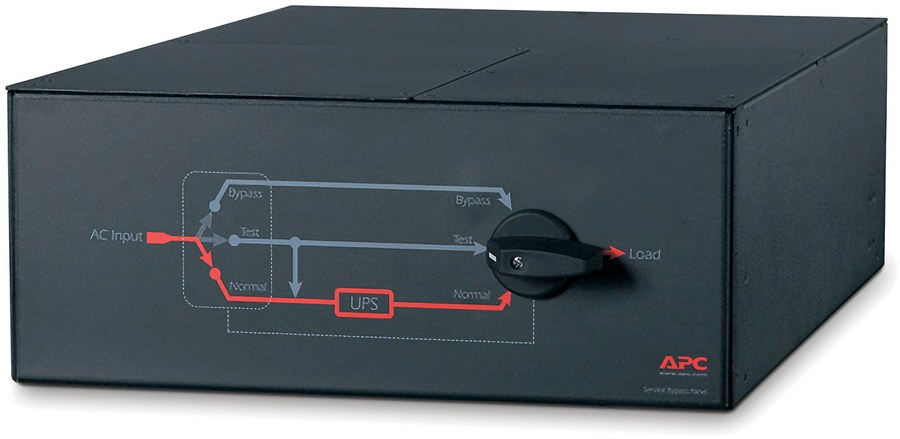

APC SBP16KP — APC Service Bypass Panel. Manufacturer reference.
APC · Full reference: SBP16KP
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- APC Service Bypass Panel
- Rated voltage
- 200/208/240V
- Rated current
- 100A
- Bypass type
- MBB
- Input connection
- Hardwire
- Output connection
- Hardwire
- Main Input Voltage
- 200 V, 208 V, 230 V, 480 V 3 phase
- Product or Component Type
- Bypass kit
- Main Output Voltage
- 120 V, 200 V, 208 V, 230 V
- Other Output Voltage
- 220 V, 240 V
- Output connector type
- Hard Wire 3-wire (H N + E) for 1 zone(s), Hard Wire 3-wire (2PH + G) for 1 zone(s), Hard Wire 4-wire (2PH+N+G) for 1 zone(s)
- Number of rack unit
- 4U
- Number of cables
- 1
- Provided Equipment
- Installation guide, Rack Mounting brackets, User Manual
- Range of Product
- Maintenance Bypass Panels
- Color
- Black
- Height
- 7.008 in (178 mm)
- Width
- 17.008 in (432 mm)
- Depth
- 26.0 in (660 mm)
- Net Weight
- 47.09 lb(US) (21.36 kg)
- Mounting Location
- Front
- Mounting preference
- Lower
- Mounting Mode
- Rack-mounted
- Input Frequency
- 50/60 Hz
- Number of input connectors
- 1 Hard Wire 3-wire (H N + E), 1 Hard Wire 3-wire (2PH + G), 1 Hard Wire 4-wire (2PH+N+G), 1 Hard Wire 5-wire (3PH + N + G)
- permissible voltage
- 200…240 V
- Max line current
- 100 A
- Input current limits
- 100 A
- Load Capacity
- 20000 VA
- Power factor
- 0…1
- Max current draw
- 100 A
- Protection Type
- Circuit breaker
- Ambient Air Temperature for Operation
- -4…122 °F (-20…50 °C)
- Relative Humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient Air Temperature for Storage
- -40…149 °F (-40…65 °C)
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
