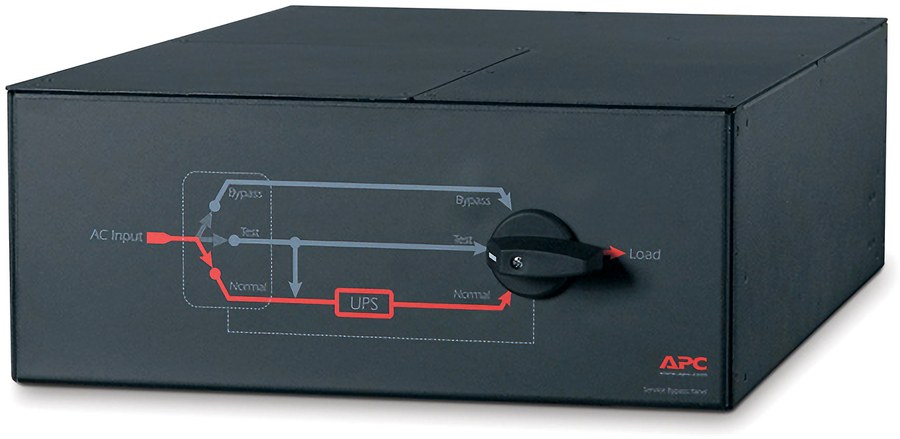

APC SBP16KRMI4U — Service Bypass Panel. Manufacturer reference.

APC · Full reference: SBP16KRMI4U

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Service Bypass Panel
Nominal voltage: 230V
Maximum current: 100A
Bypass type: MBB
Input connection: Hardwire
Output connections: (3) 30A Hardwire Output
Rack height: 4U
Main Input Voltage: 230 V
Product or component type: Bypass kit
Main Output Voltage: 230 V
Output connector type: Hard wire 3-wire (H N + E) for 3 zone(s)
Number of rack unit: 4U
Number of cables: 1
Provided equipment: Installation guide, Rack mounting brackets, User manual
Range of product: Maintenance Bypass Panels
Colour: Black
Height: 178 mm
Width: 432 mm
Depth: 673 mm
Net weight: 21.82 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted
Network frequency: 50/60 Hz
Number of input connectors: 1 hard wire 3-wire (H N + E), 1 hard wire 4-wire (3P + E)
Max line current: 100 A
Input current limits: 100 A
Load capacity: 20000 VA
Power factor: 0…1
Max current draw: 100 A
Protection type: Circuit breaker
Ambient air temperature for operation: -20…45 °C
Relative humidity: 0…95 %
Operating altitude: 0...15000 ft
Ambient air temperature for storage: -40…65 °C
Storage Relative Humidity: 0…95 %
Storage altitude: 0…15240 m

Specifications are from the manufacturer's official product page.
