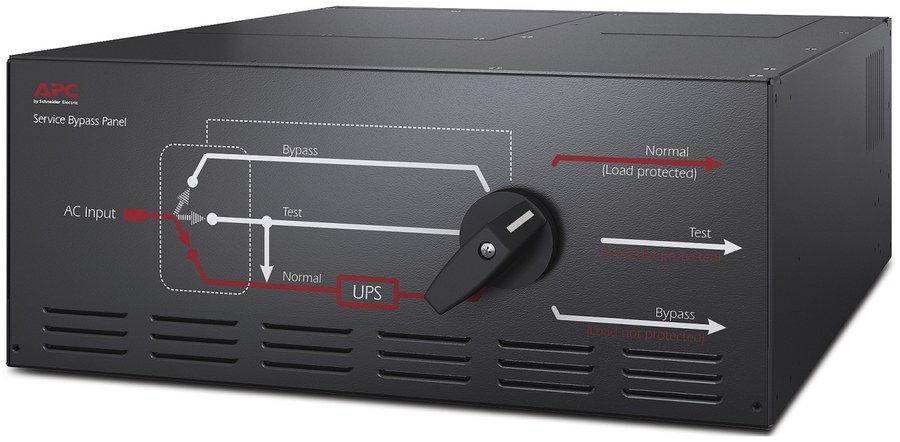

APC SBP20KRMI4U — Service Bypass Panel. Manufacturer reference.
APC · Full reference: SBP20KRMI4U
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Service Bypass Panel
- Nominal voltage
- 230V
- Rated current
- 125A
- Input connections
- 2x hardwire input connectors
- Output connections
- 8x IEC 60320 C19
- Main Input Voltage
- 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases
- Product or component type
- Bypass kit
- Main Output Voltage
- 230 V
- Other Output Voltage
- 220 V, 240 V
- Number of rack unit
- 4U
- Number of cables
- 1
- Provided equipment
- Installation guide, Rack mounting brackets, User manual
- Range of product
- Smart-UPS Accessories
- Colour
- Black
- Height
- 178 mm
- Width
- 432 mm
- Depth
- 572 mm
- Net weight
- 18.78 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Network frequency
- 50/60 Hz
- Number of input connectors
- 1 hard wire 3-wire (1P + N + E), 1 hard wire 5 wire (3P + N + E)
- Max line current
- 125 A
- Input current limits
- 125 A
- Load capacity
- 20000 VA
- Power factor
- 0…1
- Max current draw
- 125 A
- Number of power socket outlets
- 8 IEC 60320 C19
- Protection type
- Circuit breaker
- Ambient air temperature for operation
- -20…50 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -40…65 °C
- Storage Relative Humidity
- 0…95 %
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
