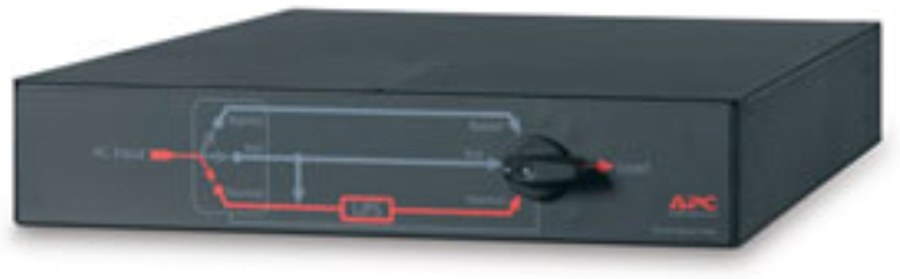

APC SBP3000 — Service Bypass Panel. Manufacturer reference.
APC · Full reference: SBP3000
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Service Bypass Panel
- Voltage range
- 100-240V
- Rated current
- 30A
- Bypass switching
- BBM
- Input connection
- Hardwire
- Output connection
- Hardwire
- Form factor
- 2U rack-mount
- Main Input Voltage
- 100 V, 120 V, 230 V
- Product or Component Type
- Bypass kit
- Main Output Voltage
- 100 V, 120 V, 230 V
- Other Output Voltage
- 110 V
- Output connector type
- Hard Wire 3-wire (H N + E) for 1 zone(s)
- Number of rack unit
- 2U
- Provided Equipment
- Installation guide, Rack Mounting brackets, User Manual
- Range of Product
- Maintenance Bypass Panels
- Color
- Black
- Height
- 3.5 in (89 mm)
- Width
- 17.008 in (432 mm)
- Depth
- 25 in (635 mm)
- Net Weight
- 26.5 lb(US) (12 kg)
- Mounting Support
- Wall
- Mounting preference
- No preference
- Mounting Mode
- Rack-mounted with kit
- Input Frequency
- 50/60 Hz
- Number of input connectors
- 1 Hard Wire 3-wire (H N + E)
- Max line current
- 30 A
- Input current limits
- 30 A
- Power factor
- 0…1
- Max current draw
- 30 A
- Protection Type
- Circuit breaker
- Ambient Air Temperature for Operation
- -4…122 °F (-20…50 °C)
- Relative Humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient Air Temperature for Storage
- -40…149 °F (-40…65 °C)
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…50000 ft (0…15240 m)
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
