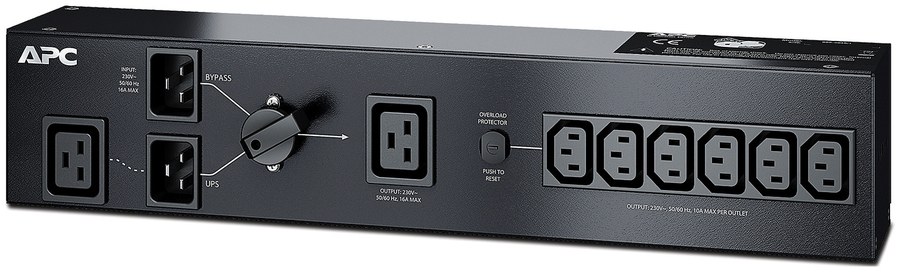

APC SBP3000RMI — Service Bypass PDU. Manufacturer reference.
APC · Full reference: SBP3000RMI
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Service Bypass PDU
- Nominal voltage
- 230V
- Rated current
- 16AMP
- Load capacity
- 3000VA
- Output connections
- (6) IEC C13 and (1) C19
- Main Input Voltage
- 230 V
- Product or component type
- Bypass kit
- Main Output Voltage
- 230 V
- Input Connection Type
- IEC 60320 C20
- Number of rack unit
- 2U
- Cable length
- 2.5 m
- Number of cables
- 1
- Provided equipment
- User manual, Rack mounting brackets
- Range of product
- Maintenance Bypass Panels
- Colour
- Black
- Height
- 89 mm
- Width
- 432 mm
- Depth
- 76 mm
- Net weight
- 2.09 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted
- Network frequency
- 50/60 Hz
- permissible voltage
- 220…240 V
- Max line current
- 16 A
- Input current limits
- 16 A
- Power factor
- 0…1
- Max current draw
- 16 A
- Number of power socket outlets
- 6 IEC 60320 C13, 1 IEC Jumpers, 1 IEC 60320 C19
- Protection type
- Circuit breaker
- Power cable length
- 1.00 m
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -15…45 °C
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
