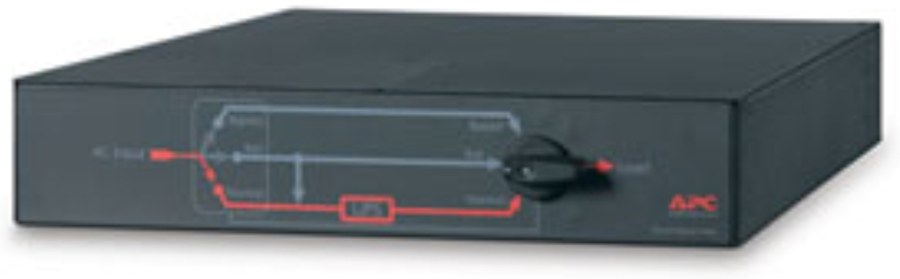

APC SBP6KRMI2U — APC Service Bypass Panel. Manufacturer reference.
APC · Full reference: SBP6KRMI2U
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- APC Service Bypass Panel
- Rated voltage
- 230V
- Rated current
- 32A
- Bypass type
- MBB
- Input connection
- Hardwire
- Output connections
- (4) IEC-320 C19
- Main Input Voltage
- 230 V
- Product or component type
- Bypass kit
- Main Output Voltage
- 230 V
- Number of rack unit
- 2U
- Provided equipment
- Installation guide, Rack mounting brackets, User manual
- Range of product
- Maintenance Bypass Panels
- Colour
- Black
- Height
- 89 mm
- Width
- 432 mm
- Depth
- 660 mm
- Net weight
- 11.36 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Network frequency
- 50/60 Hz
- Number of input connectors
- 1 hard wire 3-wire (1P + N + E)
- Max line current
- 32 A
- Input current limits
- 32 A
- Load capacity
- 7680 VA
- Power factor
- 0…1
- Max current draw
- 32 A
- Number of power socket outlets
- 4 IEC 60320 C19
- Protection type
- Circuit breaker
- Ambient air temperature for operation
- -20…50 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -40…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
