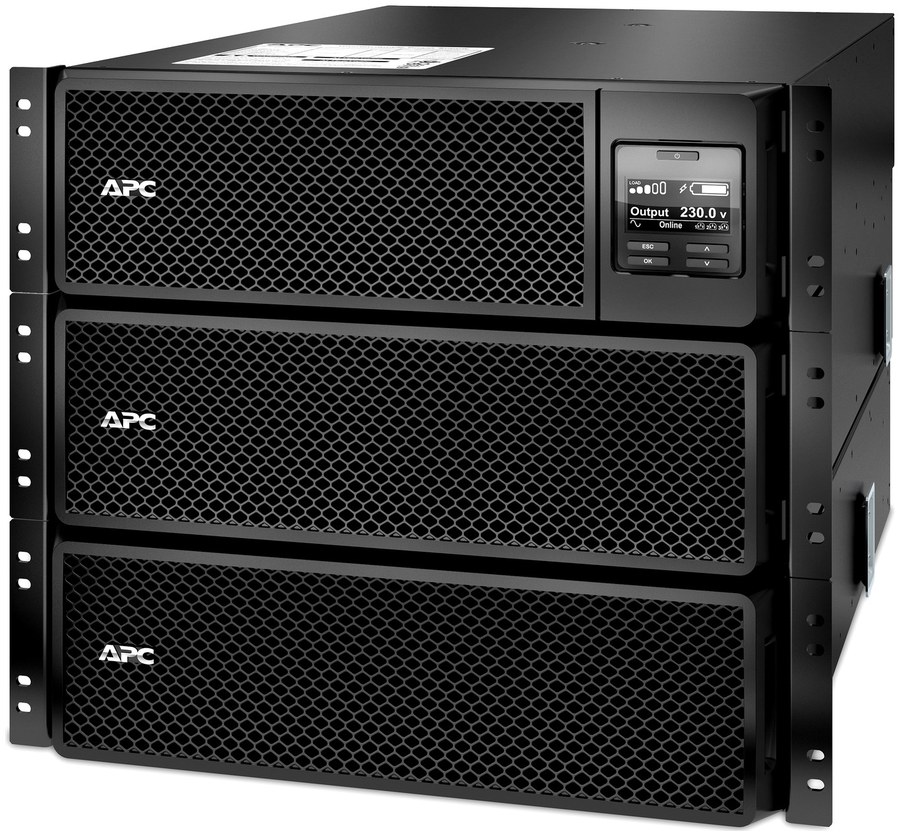

SRT10KRMXLI

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

On-Line Rackmount UPS

Power capacity

10000 VA

Maximum configurable power

10000 W

Nominal output voltage

230 V

Topology

Double conversion online

Waveform type

Sine wave

Form factor

6U rackmount

Main input voltage

230 V AC 1 phase, 380 V AC 3 phases, 400 V AC 3 phases

Other input voltage

220 V, 240 V, 380 V, 415 V

Efficiency at full load

100...275 V adjustable (half load), 173...476 V adjustable (half load)

Input connection

1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)

Input frequency

40...70 Hz auto-sensing

Output voltage

230 V 1 phase

Other output voltage

220 V, 240 V

Rated power in W

10000 W

Rated power in VA

10000 VA

Output connection

6 IEC 60320, 3 IEC Jumpers, 4 IEC 60320

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

10000 VA

Maximum configurable power in W

10000 W

UPS topology

On-Line

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Replacement battery

APCRBC140

Battery type

Lead-acid internal included

Emergency power off

Yes

Free slot

1

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Audible and visible alarms : prioritized by severity

UPS connectivity

Serial port, USB port, Embedded network management card 3, Available expansion slot

Surge energy rating

480 J

Number of rack unit

6U

Color

Black

Height

263 mm

Width

432 mm

Depth

715 mm

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): APC SRT10KRMXLI
• APC official source

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
