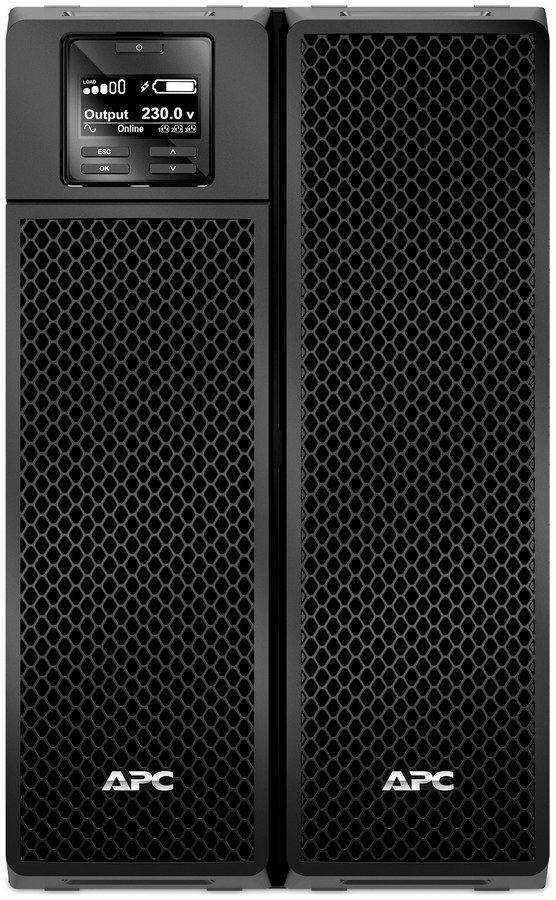

APC SRT10KXLI — On-Line Tower UPS. Manufacturer reference.
APC · Full reference: SRT10KXLI
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- On-Line Tower UPS
- Power capacity
- 10000 VA
- Maximum configurable power
- 10000 W
- Nominal output voltage
- 230 V
- Topology
- Double conversion online
- Waveform type
- Sine wave
- Form factor
- Tower
- Main input voltage
- 230 V AC 1 phase, 380 V AC 3 phase, 400 V AC 3 phase, 415 V AC 3 phase
- Other input voltage
- 220 V, 240 V, 380 V, 415 V
- Efficiency at full load
- 100...275 V adjustable (half load), 173...476 V adjustable (half load)
- Input connection
- 1 Hard Wire 3-wire (1PH+N+G), 1 Hard Wire 5-wire (3PH + N + G)
- Input frequency
- 40 - 70 Hz auto-sensing
- Output voltage
- 230 V 1 phase
- Other output voltage
- 220 V, 240 V
- Rated power in W
- 10000 W
- Rated power in VA
- 10000 VA
- Output connection
- 6 IEC 60320, 3 IEC Jumpers, 4 IEC 60320
- Bypass type
- Internal Bypass (Automatic and Manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2%
- Maximum configurable power in VA
- 10000 VA
- Maximum configurable power in W
- 10000 W
- UPS topology
- On-Line
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC140, , SRT192BP2US, , SRT192RMBPUS
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port, USB port, Embedded network management card 3, Available expansion slot
- Surge energy rating
- 480 J
- Color
- Black
- Height
- 17.008 in (432 mm)
- Width
- 10.4 in (263 mm)
- Depth
- 28.1 in (715 mm)
- Product weight
- 246.52 lb(US) (111.82 kg)
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
