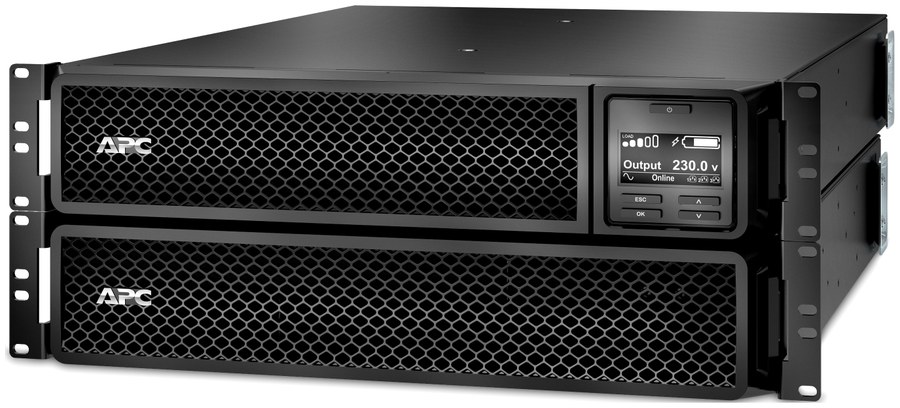

APC SRT2200RMXLI — On-Line Uninterruptible Power Supply (UPS). Manufacturer reference.
APC · Full reference: SRT2200RMXLI
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- On-Line Uninterruptible Power Supply (UPS)
- Rated power
- 2200VA/1980W
- Topology
- Double-conversion on-line
- Waveform
- Pure sine wave
- Nominal voltage
- 230V
- Form factor
- Rackmount 2U
- Mounting
- Rack/Tower convertible
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V, 240 V
- Input connection
- BS 1363 British, IEC 60320 C20, CEE 7/7
- Efficiency at full load
- 100...275 V adjustable (half load)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V, 240 V
- Rated power in W
- 1980 W
- Rated power in VA
- 2200 VA
- Output connection
- 8 IEC 60320, 2 IEC Jumpers, 2 IEC 60320
- Bypass type
- Built-in bypass
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1980 W
- UPS topology
- On-Line
- Waveform type
- Sine wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC141
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port, USB port
- Surge energy rating
- 340 J
- Number of rack unit
- 2U
- Cable length
- 2.4 m
- Number of cables
- 1
- Color
- Black
- Height
- 85 mm
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
