SRT5KXLI

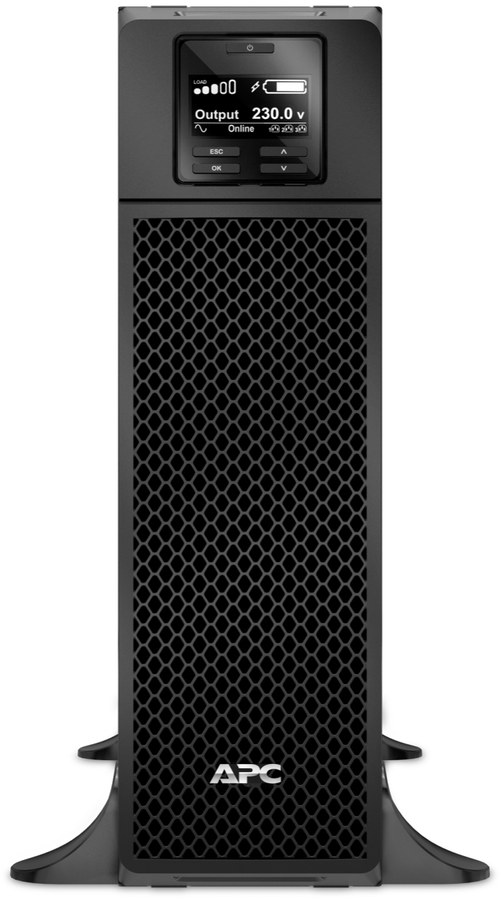

APC SRT5KXLI — On-Line Uninterruptible Power Supply (UPS). Manufacturer reference.

APC · Full reference: SRT5KXLI

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: On-Line Uninterruptible Power Supply (UPS)
Rated power: 5kVA/4.5kW
Topology: Double-conversion on-line
Waveform: Pure sine wave
Nominal voltage: 230V
Form factor: Tower
Output outlets: 6x IEC C13, 4x IEC C19
Main input voltage: 230 V AC 1 phase
Other input voltage: 220 V, 240 V
Efficiency at full load: 100...275 V adjustable (half load)
Input connection: 1 Hard Wire 3-wire (1PH+N+G)
Input frequency: 40 - 70 Hz auto-sensing
Output voltage: 230 V 1 phase
Other output voltage: 220 V, 240 V
Rated power in W: 4500 W
Rated power in VA: 5000 VA
Output connection: 6 IEC 60320, 2 IEC Jumpers, 4 IEC 60320
Bypass type: Internal Bypass (Automatic and Manual)
Crest factor: 3 : 1
Harmonic distortion: Less than 2%
Maximum configurable power in VA: 5000 VA
Maximum configurable power in W: 4500 W
UPS topology: On-Line
Waveform type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Replacement battery: APCRBC140
Battery type: Lead-acid internal included
Emergency power off: Yes
Free slot: 1
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Audible and visible alarms : prioritized by severity
UPS connectivity: Serial port, USB port, Pre-installed network management card 3
Surge energy rating: 480 J
Color: Black
Height: 17.008 in (432 mm)
Width: 5.1 in (130 mm)
Depth: 28.3 in (719.4 mm)

Specifications are from the manufacturer's official product page.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
