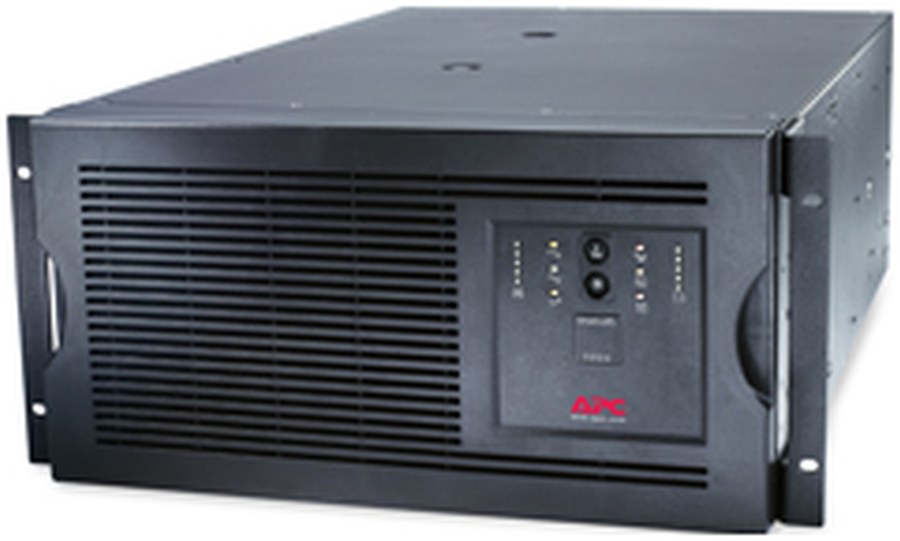

APC SUA5000RMI5U — Smart-UPS Rackmount/Tower UPS. Manufacturer reference.
APC · Full reference: SUA5000RMI5U
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Smart-UPS Rackmount/Tower UPS
- Rated power
- 5000VA
- Nominal voltage
- 230V
- Input voltage
- 208 V / 230 V
- Mounting
- Rackmount/Tower
- Status indicators
- LED
- Network management
- Remote management
- Main input voltage
- 230 V AC 1 phase
- Efficiency at full load
- 151...302 V adjustable, 160...286 V
- Input connection
- 1 hard wire 3-wire
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V, 240 V
- Rated power in W
- 4000 W
- Rated power in VA
- 5000 VA
- Output connection
- 8 IEC 60320 C13, 4 IEC Jumpers, 2 IEC 60320 C19
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 5 % at full load
- Maximum configurable power in VA
- 5000 VA
- Maximum configurable power in W
- 4000 W
- Transfer time
- 2 ms typical : 4 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Sine wave
- Output frequency
- 47...53 Hz for 50 Hz nominal sync to mains
- Replacement battery
- RBC55
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Free slot
- 0
- Preinstalled device
- Network management card
- Control panel
- LED status display with on line : on battery : replace battery and overload indicators
- UPS connectivity
- Serial port, USB port, Available expansion slot
- Surge energy rating
- 480 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping, response time : meets UL 1449
- Number of rack unit
- 5U
- Color
- Black
- Height
- 222 mm
- Width
- 483 mm
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
