OAE 222

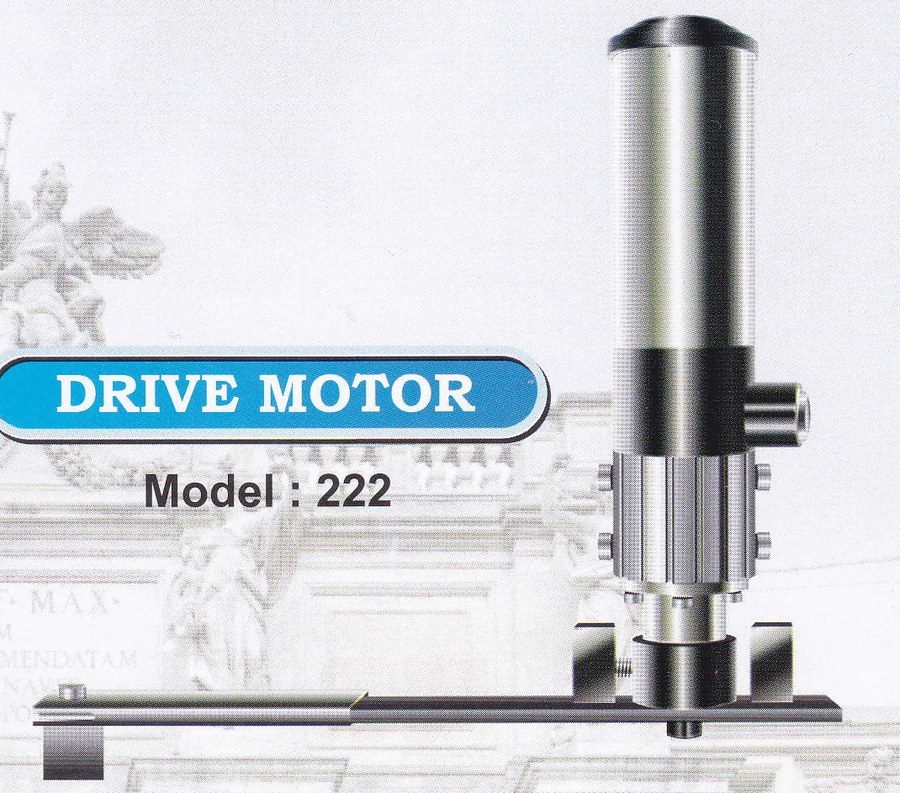

Autogate OAE 222 — Rotary drive motor (model 222). Manufacturer reference.

Autogate · Full reference: OAE 222

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Rotary drive motor (model 222)
Catalogue label: Drive motor, Model: 222
Driving method: Electro-mechanical rotatory type, completed with planetary speed reducer
Operating voltage: 18 volt for normal speed; 12 volt for ending
Motor amp.: Working amp range from 0.8 amp - 2.50 amp, depending on type of mounting and condition of gate
Torque: 12 volt produces 11 kg-meter; 18 volt produces 20 kg-meter
Rotational speed: 13 seconds per 90° at 12 volt; 8.6 seconds per 90° at 18 volt
Back-up battery: 12 volt 7AH rechargeable
Safety service: Current sensor using Hi-Amp cut and auto-reversal / stop
Safety barrier: Infra-red beam sensor (optional)
Electric control: Micro-processor base
Manual operation: Gate can be freed using the released key during power failure
Mounting types shown: Pillar mounting, gate mounting, hinge mounting

Specifications are from the manufacturer's OAE Auto-Gate System catalogue (supplied to ISD by OAE), model 222 table.
Catalogue reminder: always choose a drive gate system with lower torque to reduce the risk of injury or damage during an accident; the catalogue states that 20 kg-meter is good enough for most standard gates.
The catalogue states that its content may differ from time to time and that the manufacturer reserves the right to alter any specification without prior notice.
Catalogue reminder: a low-voltage DC motor is preferred to a motor powered by 230 V mains to avoid electric shock hazard, and uninterrupted operation during a power failure is only possible with 12 V DC motors operated by a back-up battery.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer catalogue checked 2026-10-30. The supplied unit and local terms require confirmation.
