OAE 333B

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

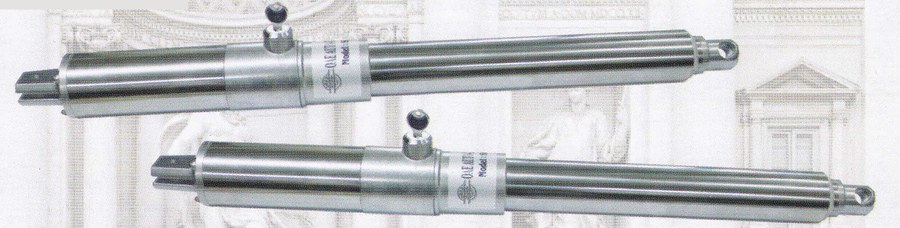

Swing type auto-gate (model 333B, with key lock)

Catalogue label

Model: 333B (with Key Lock)

Driving method

Electro-mechanical screw driver piston type

Operating voltage

DC 18 V for normal speed; DC 12 V for ending speed

Motor output

15 watt per arm

Motor amp.

2.1

Piston displace

32 cm

Piston speed

2.9 cm/sec

Back-up battery

12 V 7AH rechargeable

Safety clutch

Electric current sensing using Hi-Amp auto-reverse / stop

Safety barrier

Infrared beam sensor (optional)

Electric controller

Micro-processor based

Manual operation

Special released key / device during power failure

Dimension guide A (hinge, swing and folding gate)

165 mm - 180 mm

Dimension guide B

128 mm - 140 mm

Dimension guide C

816 mm - 837 mm

Dimension guide D

Min. 1000 mm

Selection notes

• Specifications are from the manufacturer's OAE Auto-Gate System catalogue (supplied to ISD by OAE), which has one table for models 333A and 333B; this page is the 333B (with Key Lock) item.
• The catalogue names 333B as the version with key lock; its table lists no other difference from 333A.
• The catalogue states that its content may differ from time to time and that the manufacturer reserves the right to alter any specification without prior notice.
• Catalogue reminder: a low-voltage DC motor is preferred to a motor powered by 230 V mains to avoid electric shock hazard, and uninterrupted operation during a power failure is only possible with 12 V DC motors operated by a back-up battery.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Autogate OAE 333B

Manufacturer catalogue checked 2026-10-30. The supplied unit and local terms require confirmation.
