BF-528

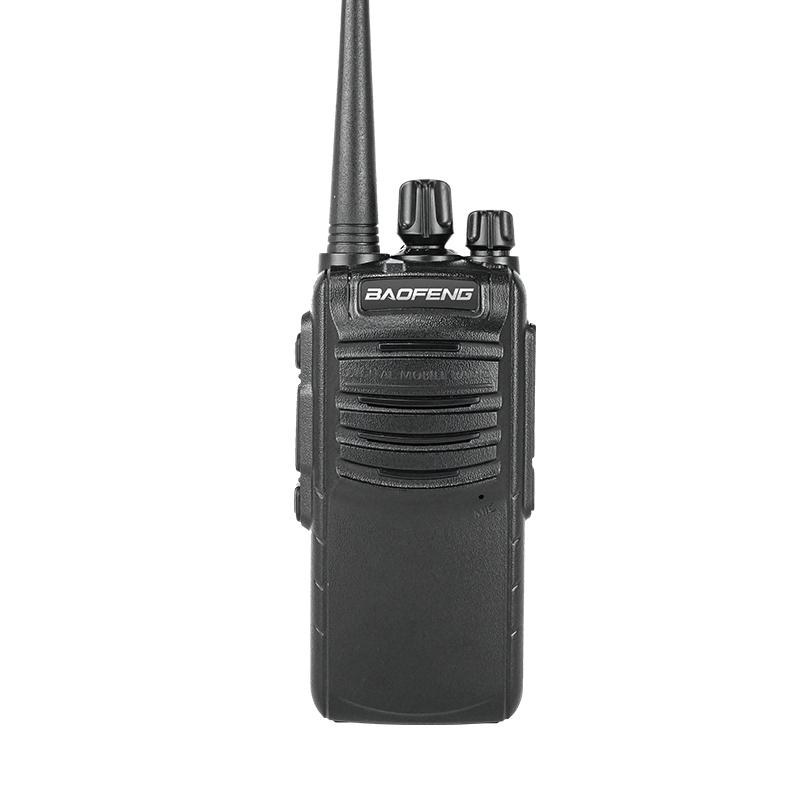

Baofeng BF-528 — Analog Dual-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: BF-528

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Dual-Band Handheld Two-Way Radio
Frequency range: VHF 144-148 MHz; UHF 420-450 MHz
Transmit power: 7W(H)/5W(M)/1W(L)
Channels: 16
Battery: 1800mAh Li-ion; 7.4V; about 12 hours
Key features: PLL frequency synthesis; Simplex operation; High/medium/low power; 50Ω antenna impedance
Dimensions / weight: 135×64×40 mm (excluding antenna)
Frequency Stability: ±2.5ppm
Work Temperature: -20 °C to +60°C
Frequency Combination: PLL frequency synthesis
Antenna Impedance: 50 Ω
Work Mode: Same Frequency simplex Operation or Different Frequency simplex Operation
Transmitter: Modulation Mode(W/N Band): 16KΦF3E
Transmitter: Maximum Frequency Deviation (W/N Band): ≤5 KHz
Transmitter: Spurious Power: ≤7.5 μW
Transmitter: Adjacent channel power: ≤-65dB/≤-60dB
Transmitter: Audio Distortion: <5 %
Transmitter: SNR: ≥-45dB/≥-40dB
Transmitter: CTCSS/DCS Frequency Deviation (W/N Band): 0.7±0.1KHz (W), 0.4±0.1KHz (N)
Transmitter: Modulation Sensitivity: 8-12mV
Transmitting Current: ≤1500mA
Receiver: Sensitivity: <0.20 μ V (12dB SINAD)
Receiver: Audio Power: >2W@10%
Receiver: Inter modulation Interference Resistance: ≥65dB (W), ≥55dB (N)
Receiver: Adjacent channel Sensitivity (W/N Band): ≥65dB (W), ≥55dB (N)
Receiver: Audio Distortion: 5 %
Receiving Current: ≤ 380mA

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
