BF-A58S

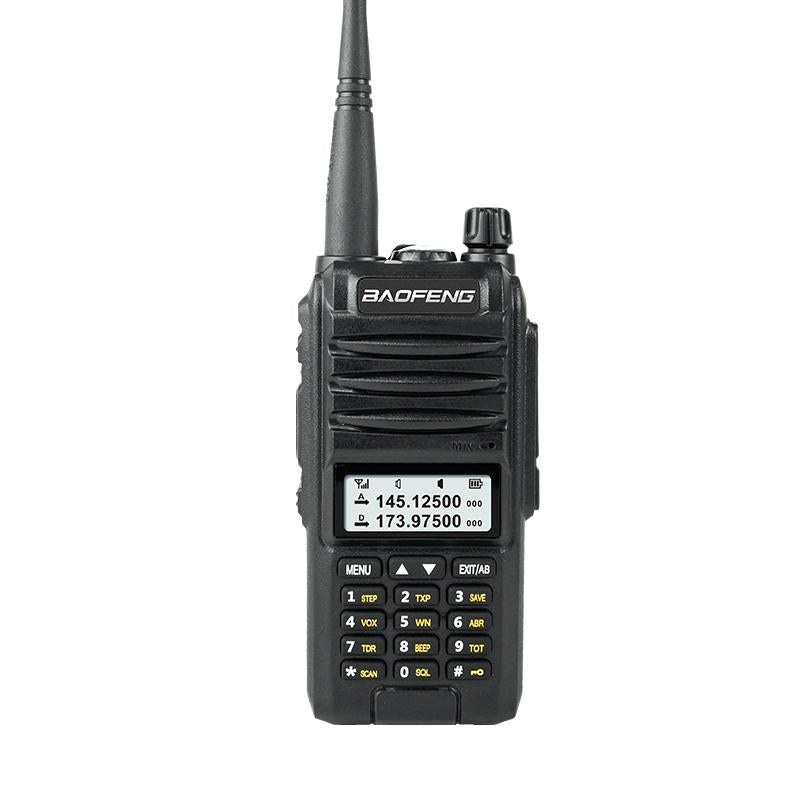

Baofeng BF-A58S — Analog Tri-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: BF-A58S

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Tri-Band Handheld Two-Way Radio
Frequency range: 144-148 MHz; 200-260 MHz; 420-450 MHz (Rx/Tx)
Transmit power: 5W/1W
Channels: Up to 128
Battery: 1800mAh Li-ion; 7.4V
Key features: Tri-band operation; FM modulation; Simplex/semi-duplex operation; Selectable power; Wide/narrow modulation
Dimensions / weight: 65×41.5×133.8 mm; approx. 279g
Frequency stability: 2.5ppm
Antenna impedance: 50Ω
Operating temperature: -20°C to 60°C
Consumption in reception: 380mA
Consumption in transmission: ≤1.4A
Mode of operation: Simplex or semi-duplex
Duty cycle: 03/03/54 min.(Rx/Tx/Standby)
Transmitter: Type of modulation: FM
Transmitter: Emission class: 16KΦF3E/11KΦF3E(W/N)
Transmitter: Maximum deviation: ≤±5kHz/≤±2.5kHz(W/N)
Transmitter: Spurious emissions: <-60dB
Receiver sensitivity: 0.2 μV(at 12 dB SINAD)
Receiver: Intermodulation: 60dB
Receiver: Audio output: 1W
Receiver: Spurious Radiation: ≥65dB

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
