BF-H6

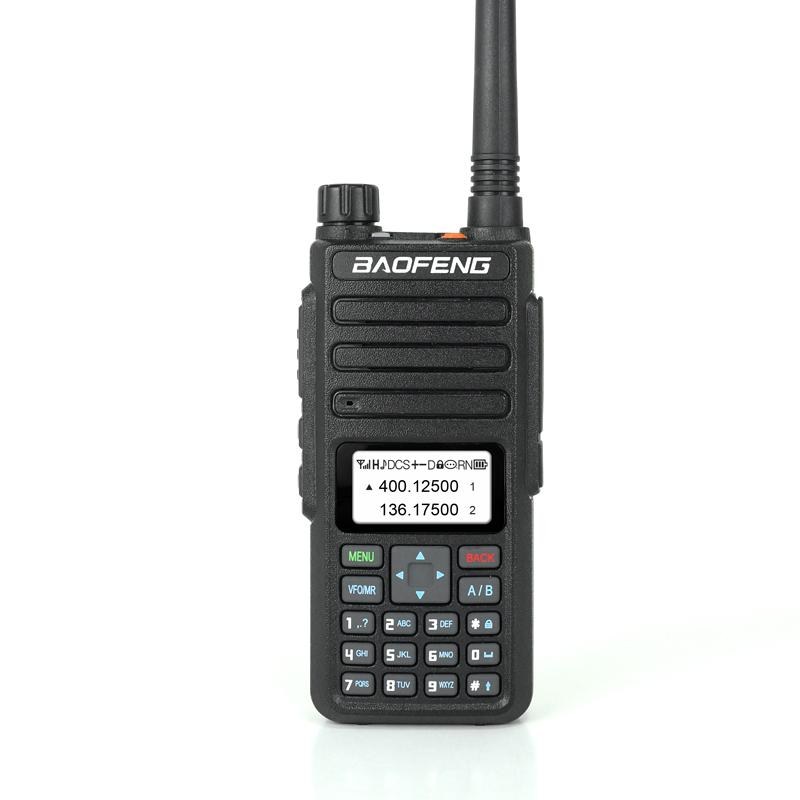

Baofeng BF-H6 — Analog VHF/UHF Dual-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: BF-H6

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog VHF/UHF Dual-Band Handheld Two-Way Radio
Frequency range: VHF 144-148 MHz; UHF 420-450 MHz
Channels: 128
Battery: 2200mAh Li-ion; 7.4V
Key features: Dual-band operation; 12.5/25kHz channel spacing; QT/DQT signaling deviation; Wide/narrow FM modulation; 1W receiver audio output
Dimensions / weight: 134×62×32 mm (excluding antenna); approx. 300g including battery and antenna
Channel Spacing: 25KHz(Wide), 12.5K(Narrow)
Frequency Stability: ±2.5ppm
Operating Temperature: -20~+60°C
Antenna Impedance: 50Ω
Transmit Current: H≤2.5A; M≤1.8A; L≤1.1A
Modulation(Wide/Narrow): 16KΦF3E/11KΦF3E
Maximum deviation: ≤±5 kHz/≤±2.5 kHz (W/N)
Stray Power: ≤7.5uW
Adjacent Channel power: ≤-65dB/≤-60dB
Signal-to-noise(wide/narrow): ≥-45dB/≥-40dB
QT/DQT Deviation (wide/narrow): 0.7±0.1KHz/0.4±0.1KHz
Modulation Sensitivity: 8-12mV
Receiver Sensitivity: ≤0.25uV(12dB SINAD)
Receiver: Audio Power: 1W@10%
Receiver: Audio Distortion: <10%
Receiver: Signal-to-Noise: ≥45dB
Receiver: Adjacent Channel Selectivity (wide/narrow): ≥-65dB/≥-60dB
Receiver: Intermodulation (wide/narrow): ≥-65dB/≥-60dB
Receiver: Stray Suppression: ≥-65dB
Receive Current: ≤380mA

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
