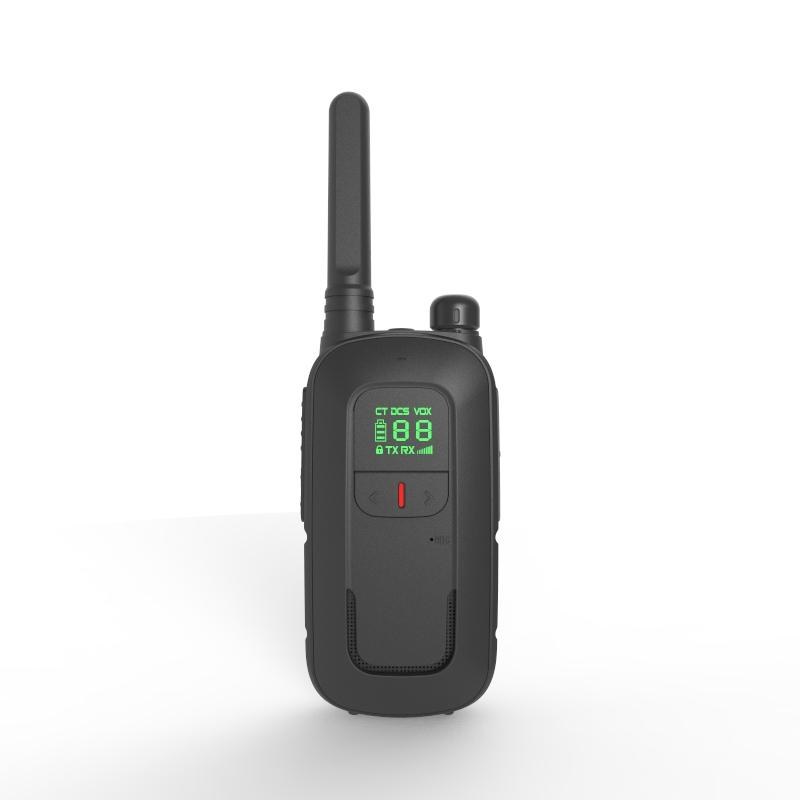

Baofeng BF-T12 — UHF Analog Two-Way Radio. Manufacturer reference.
Baofeng · Full reference: BF-T12
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- UHF Analog Two-Way Radio
- Frequency range
- 420-450MHz
- Transmit power
- 2W/0.5W
- Channels
- 99
- Battery
- 3.7V Li-ion
- Key features
- FM modulation; Simplex operation
- Dimensions / weight
- 58×28.5×172mm
- Frequency stability
- ±2.5ppm
- Operation temperature
- -20°C~+50°C
- Mode of operation
- Simplex
- Antenna impedance
- 50Ω
- Ground connection
- Negative electrode
- Transmitter: Modulation
- FM
- Transmitter: Max frequency deviation
- ≤±5KHz
- Transmitter: Stray Radiation
- ≤-60dB
- Transmit current
- ≤1000mA
- Transmitter: Pre-emphasis Character
- 6dB/per octave
- Receiver: Sensitivity
- <0.16uv (12dB SINAD)
- Receiver: Squelch Sensitivity
- < 0.2uv
- Receiver: Audio power
- ≥380mW
- Receiver: Audio distortion
- <10%
- Receiver: Intermodulation
- ≥65dB
- Receive current
- ≤380mA
Selection notes
- Specifications are from the Baofeng product page (baofengradio.com).
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
