BF-T57

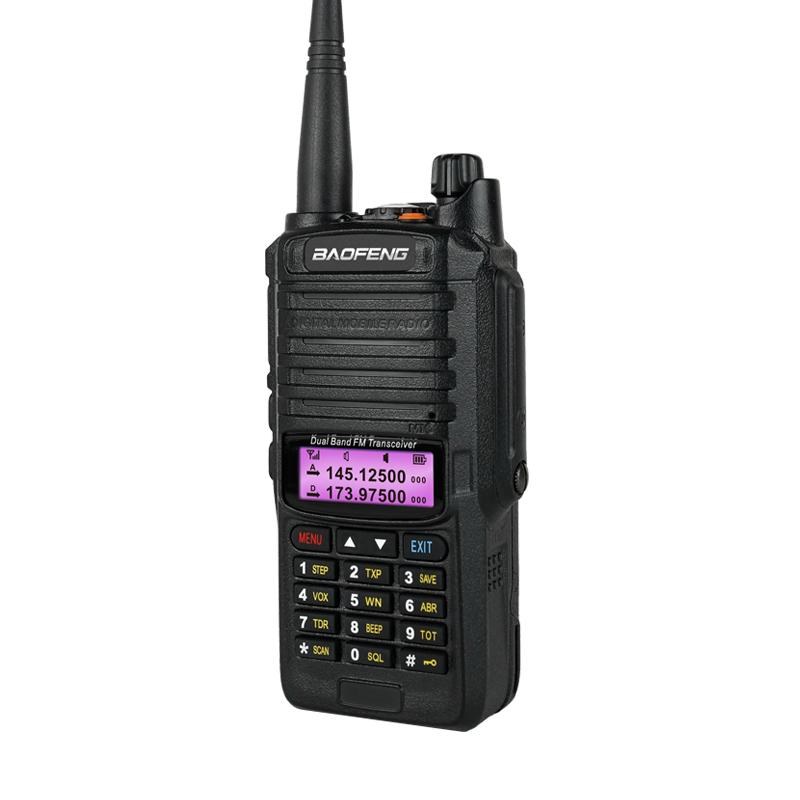

Baofeng BF-T57 — VHF/UHF Analog Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: BF-T57

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: VHF/UHF Analog Two-Way Radio
Frequency range: VHF 144-148MHz; UHF 420-450MHz (TX/RX)
Transmit power: 5W/1W
Channels: 128
Battery: 7.4V 1800mAh rechargeable lithium
Key features: FM modulation; Simplex operation; Semi-duplex operation; Selectable frequency steps
Dimensions / weight: 58×110×32mm; approx. 130g
Frequency Stability: 2.5ppm
Frequency step: 2.5kHz/5kHz/6.25Khz/10 Khz/12.5 Khz/20 Khz/25 Khz
Antenna Impedance: 50Ω
Operating Temperature: -20 °C to +60°C
Consumption in standby: 380mA
Consumption in transmission: ≤1.4A
Mode of operation: Simplex or semi-duplex
Duty cycle: 03/03/54 min.(Rx/Tx/Standby)
Transmitter: Type of modulation: FM
Transmitter: Emission class: 16KΦF3E/11KΦF3E(W/N)
Transmitter: Maximum deviation: ≤±5KHz/≤2.5KHz(W/N)
Transmitter: Spurious emissions: <-60 dB
Receiver Sensitivity: <0.2 μ V (at 12dB SINAD)
Receiver: Intermodulation: 60 dB
Receiver: Audio output: 1W
Receiver: Spurious Radiation: <-60 dB

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
