BF-UV8

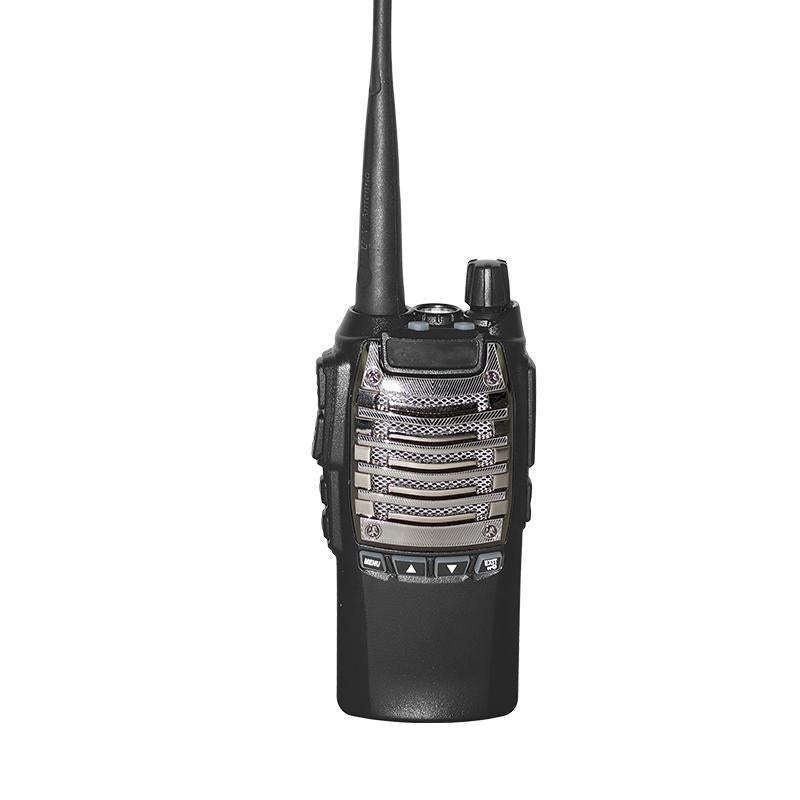

Baofeng BF-UV8 — VHF/UHF Analog Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: BF-UV8

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: VHF/UHF Analog Two-Way Radio
Frequency range: VHF 144-148MHz; UHF 420-450MHz
Transmit power: 5W/1W
Channels: 128
Battery: 7.4V rechargeable Li-ion
Key features: FM modulation; CTCSS/DCS; Simplex operation; Wide/Narrow bandwidth
Frequency Stability: ±2.5ppm
Work Temperature: -20 °C to +50°C
Antenna Impedance: 50 Ω
Work Mode: Same Frequency simplex Operation or Different Frequency simplex Operation
Transmitter: Modulation Mode (W/N Band): FM (F3E)
Transmitter: Maximum Frequency Deviation (W/N Band): <5KHz(W), <2.5KHz(N)
Transmitter: Spurious Radiation: ≤7.5 µW
Transmitter: Adjacent channel power: ≤-65dB (W) / ≤-60dB (N)
Transmitter: SNR: ≥-45dB (W)/≥-40dB (N)
Transmitter: CTCSS/DCS Frequency Deviation (W/N Band): 0.7±0.1KHz (W), 0.4±0.1KHz (N)
Transmitter: Modulation Sensitivity: 8-12mV
Transmitting Current: ≤1500mA
Receiver: Sensitivity: -122dBm(12dB SINAD)
Receiver: Audio Power: 1 W
Receiver: Audio Distortion: <10%
Receiver: Inter modulation Interference Resistance: ≥65dB (W), ≥60dB (N)
Receiver: Adjacent channel Sensitivity (W/N Band): ≥65dB (W), ≥60dB (N)
Receiver: Spurious Response: ≥65dB
Receiving Current: ≤ 380mA

Specifications are from the Baofeng product page (baofengradio.com).
