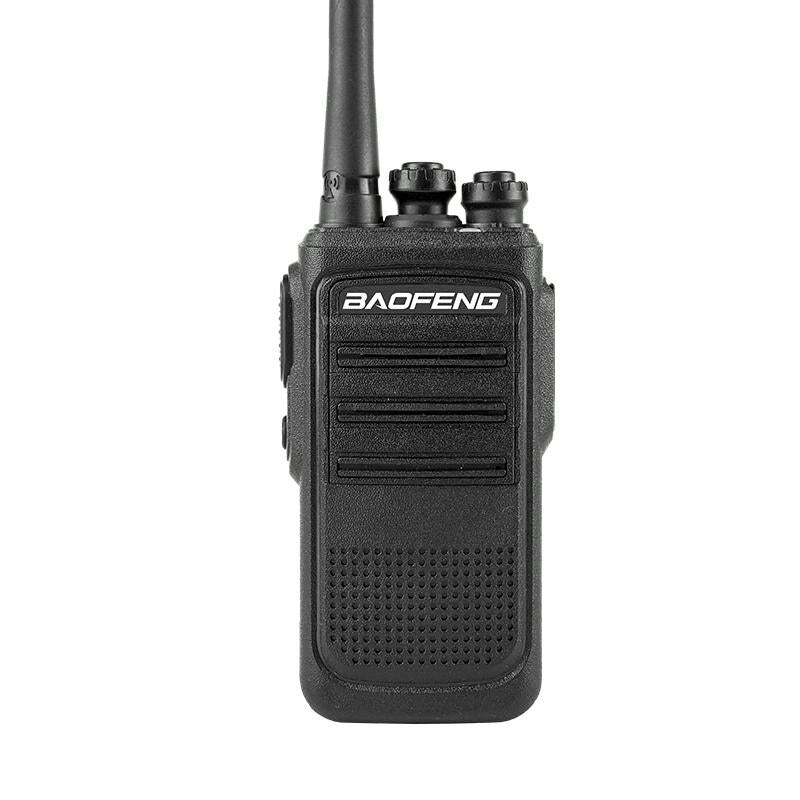

Baofeng BF-V3 — UHF Analog Two-Way Radio. Manufacturer reference.
Baofeng · Full reference: BF-V3
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- UHF Analog Two-Way Radio
- Frequency range
- 420-450MHz
- Transmit power
- <5W
- Channels
- 16
- Battery
- 3.7V
- Key features
- Simplex operation; QT/DQT signalling; Wide/Narrow bandwidth
- Frequency stability
- ±2.5ppm
- Operation temperature
- -20°C-+50°C
- Mode of operation
- Simplex
- Antenna impedance
- 50Ω
- Transmitter: Maximum deviation(W/N)
- ≤5KHz/≤2.5KHz
- Transmitter: Spurious emission
- ≤7.5uW
- Transmitter: Adjacent channel power
- ≤-65dB/≤-60dB
- Transmitter: SNR(W/N)
- ≥-45dB/≥-40dB
- Transmitter: QT/DQT (W/N)
- 0.7±0.1KHz/0.4±0.1KHz
- Transmitter: Modulation sensitivity
- 8-12mV
- Transmitter: Transmission current
- ≤1.2A
- Receiver: Sensitivity
- -122dBm (12dB SINAD)
- Receiver: Audio power
- 1W
- Receiver: Audio distortion
- ≤10%
- Receiver: Intermodulation (W/N)
- ≥65dB/≥60dB
- Receiver: Adjacent channel selectivity(W/N)
- ≥65dB/≥60dB
- Receiver: Clutter suppression
- ≥65dB
- Receiver current
- ≤380mA
Selection notes
- Specifications are from the Baofeng product page (baofengradio.com).
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
