DM-V1

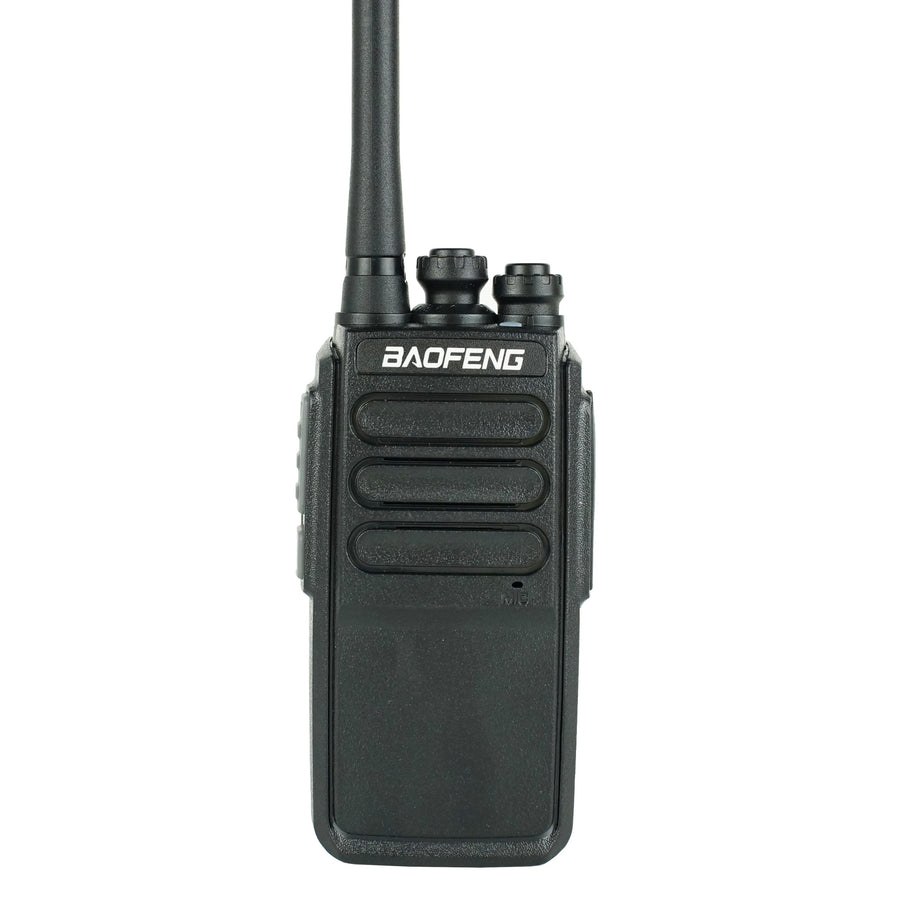

Baofeng DM-V1 — Digital DMR / Analog UHF Handheld Radio. Manufacturer reference.

Baofeng · Full reference: DM-V1

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Digital DMR / Analog UHF Handheld Radio
Frequency range: UHF 400-470 MHz
Transmit power: 2W/1W
Channels: 1024
Battery: 3.7V; capacity not specified
Key features: DMR Digital Operation; Analog Reception; AMBE+2 Vocoder; Programmable Channels
Dimensions / weight: 5.04 x 2.36 x 1.38 in (excluding antenna); approximately 6.74 oz
Frequency Range UHF: 400-470MHz
Memory Channel Up to: 1024
Frequency Stability: ±1.0ppm
Operating Temperature: -30℃~ 60℃
Operating Voltage DC: 3.7V
Dimension: (5.04 x 2.36 x 1.38)" / ()cm(L x W x H)( no including antenna)
Weight About: 6.74oz / g (Include in battery and antenna)
Output power High: 2W Low: 1W
Output Consumption: Analog≤1.2A Digital≤0.8A
FM Modulation(Wide / Narrow): 16KF3E@25KHz / 11KF3E@12.5KHz / 141KF3E@20KHz
Modulation Distortion: ≤5%
Signal-To-Noise(Wide/Narrow): ≥45dB@25KHz ≥40dB@12.5KHz
Adjacent Channel power: ≤-65dB ≤-60dB
Audio Response: 1~3dB
Antenna Port Spurious 9KHz-1GHz: ≤-36dBm1GHz-12.75GHz: ≤-30dBm
Digital Protocol: ETSI-TS102 361-1,-2,-3
Vocoder Type: AMBE 2TM
Analog Receive Sensitivity: -122dBm (12dB SINAD)
Digital Receive Sensitivity: -120dBm (BER≤5%)
Audio Power: 1W

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
