GT-3DMR

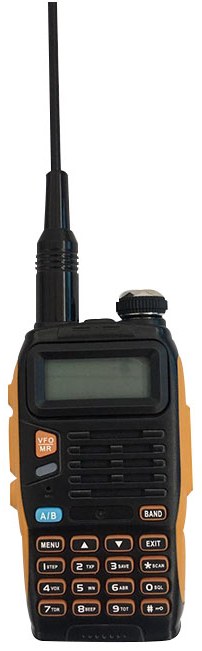

Baofeng GT-3DMR — UHF Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: GT-3DMR

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: UHF Handheld Two-Way Radio
Frequency range: UHF 400-480 MHz (baofengradio.co); 430-440 MHz (baofengradio.cn regional listing)
Transmit power: Up to 5W
Channels: 128
Battery: 3.7V 2800mAh Li-ion
Key features: CTCSS/CDCSS; VOX; Emergency Alarm; PC Programming; Battery Saver
Dimensions / weight: 105 x 65 x 34 mm; 210g (including battery and antenna)
Channel spacing: 25.0kHz / 12.5kHz
Frequency stability: ±1.5ppm
Working temperature: -20°C ~ +60°C
Antenna impedance: 50Ω
Receiving sensitivity: 0.15μV / 0.18μV
Receiver: Adjacent channel selectivity: 65dB / 55dB
Receiver: Intermodulation rejection: 55dB
Receiver: Spurious response: ≥60dB
Receiver: Signal to noise ratio: 40dB / 35dB
Receiver: Rated audio output power: ≥600mW
Receiver: Rated audio distortion: ≤5%
Transmitter: Modulation mode: 16KΦF3E / 8KΦF3E
Transmitter: Modulation limit: ≤5kHz / ±2.5kHz
Transmitter: FM distortion: ≤5%
Transmitter: Residual FM: -45dB / -35dB
Transmitter: Adjacent channel power: -65dB / -55dB
Transmitter: Stray and harmonic: ≤-36dBm

Specifications are from a published Baofeng product page; the source is linked below.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
