GT-5TP

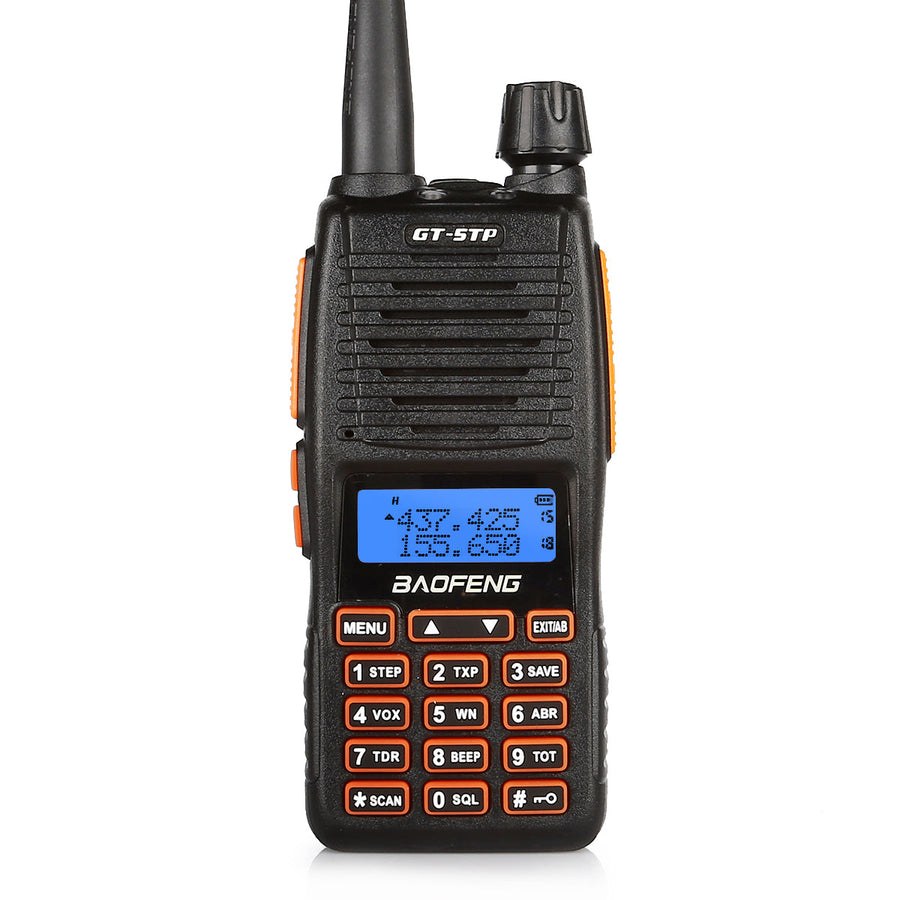

Baofeng GT-5TP — Analog VHF/UHF Dual-Band Handheld Radio. Manufacturer reference.

Baofeng · Full reference: GT-5TP

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog VHF/UHF Dual-Band Handheld Radio
Frequency range: VHF 144-148 MHz; UHF 420-450 MHz (TX/RX)
Transmit power: 8W/4W/1W
Channels: 128
Battery: 7.4V 2000mAh
Key features: Dual PTT; VOX; Tri-Color Backlit Display; Channel Knob; Selectable Output Power
Dimensions / weight: 132 x 60 x 35 mm (excluding antenna); 238g (including battery and antenna)
High/ Mid/ Low Power settings: 8/4/1W
Channel Memories: 128
Frequency Stability: ±2.5ppm
CTCSS/DCS deviation: 0.5±0.1kHz (Wide) / 0.3±0.1kHz (Narrow)
Mode of operation: Simple or semi-duplex
Modulation Mode: 16kF3E / 11kF3E
Maximum deviation: 5kHz (Wide) / 2.5kHz (Narrow)
Adjacent Ch. power: -65dB (Wide) / -60dB (Narrow)
Pre-emphasis characteristics: 6dB
Antenna: SMA Female
Antenna Impedance: 50
Power adapter Input: AC100-240V, 50-60Hz; Output: DC10V/500mA
Operating Voltage: DC 7.4V
Current: 1.6A(5W)
Dimension (Wx Hx D): 132x60x35mm (not included antenna)
Weight: 238g(including battery, antenna)

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
