MINI-5

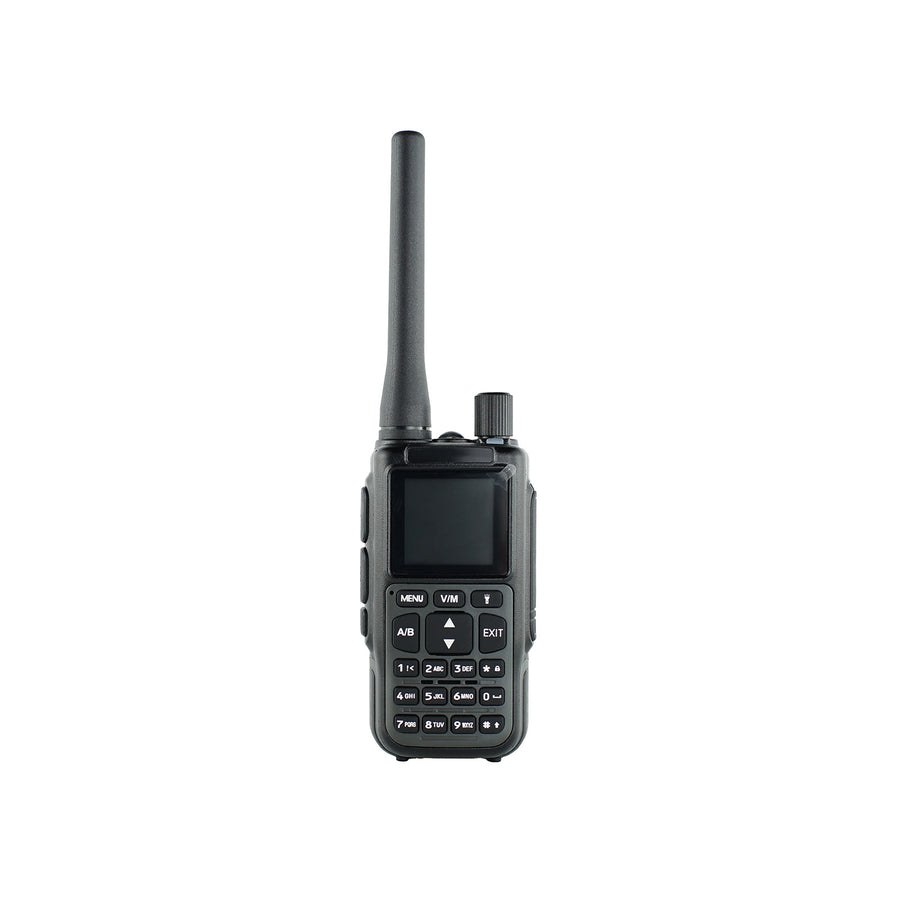

Baofeng MINI-5 — Dual-Band Amateur Handheld Radio. Manufacturer reference.

Baofeng · Full reference: MINI-5

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Dual-Band Amateur Handheld Radio
Frequency range: TX: 136-174/400-480 MHz; RX: FM 76-108/AM 108-136/VHF 136-174/UHF 350-390/400-520 MHz; NOAA
Transmit power: 5W/2W
Channels: 999
Battery: 1600mAh
Key features: Ola App Programming; Dual PTT; Dual Standby; Airband Reception; NOAA Reception
Dimensions / weight: 108×52×37 mm; 200g
Channel Spacing: 25.0 KHz (Wide) / 12.5 KHz (Narrow)
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1600 mA
Receive Sensitivity: 0.25 µV (12 dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380 mA
Antenna Impedance: 50 Ω
Connection for Accessories: 2-pin Kenwood jack
APP Support: OLA Radio(iOS/Android)

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
