MINI-5G

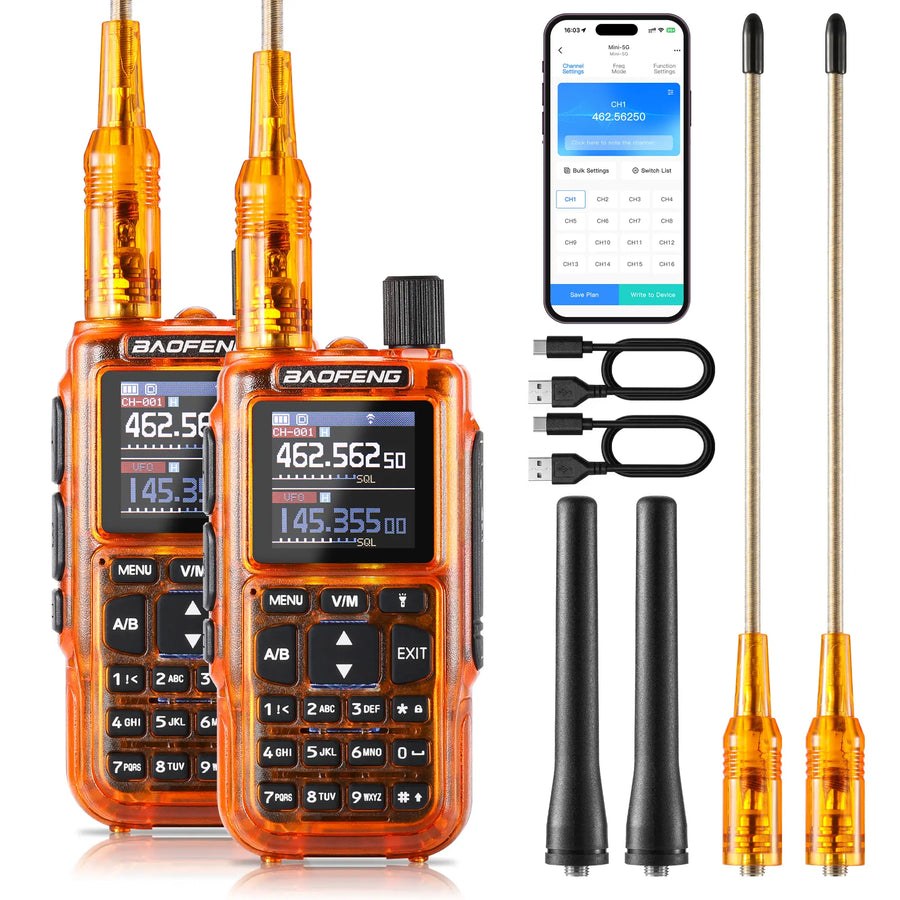

Baofeng MINI-5G — Compact GMRS Handheld Radio. Manufacturer reference.

Baofeng · Full reference: MINI-5G

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Compact GMRS Handheld Radio
Frequency range: TX: GMRS; RX: FM 76-108/AM 108-136/VHF 136-174/UHF 350-390/400-520 MHz; NOAA
Transmit power: 5W/0.5W
Channels: 999
Battery: 2200mAh Rechargeable; USB-C
Key features: Bluetooth App Programming; Dual PTT; GMRS Repeater Support; One-Key Frequency Copy; 1.44-inch Color Display
Dimensions / weight: 108×52×37 mm; 212g
Frequency (TX & RX): GMRS
Frequency (RX): FM 76–108 MHz; Airband: 108-136 MHz; 136-174 MHz; 350-390 MHz
Channel Spacing: 25.0 KHz (Wide) / 12.5 KHz (Narrow)
Memory Channels: Up to 999
Programming App: Ola Radio (iOS & Android)
CHIRP Compatibility: Select “UV-5G Mini”
Charging Port: USB-C
Operating Voltage: DC 7.4 V ±10%
Transmission Current: ≤1600 mA
Antenna Impedance: 50 Ω
Accessory Connector: 2-Pin Kenwood Jack
Dimensions (Without Antenna): 4.3 × 2.0 × 1.5 in / 108 × 52 × 37 mm
Weight (Including Battery): 7.5 oz / 212 g

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
