SW-9

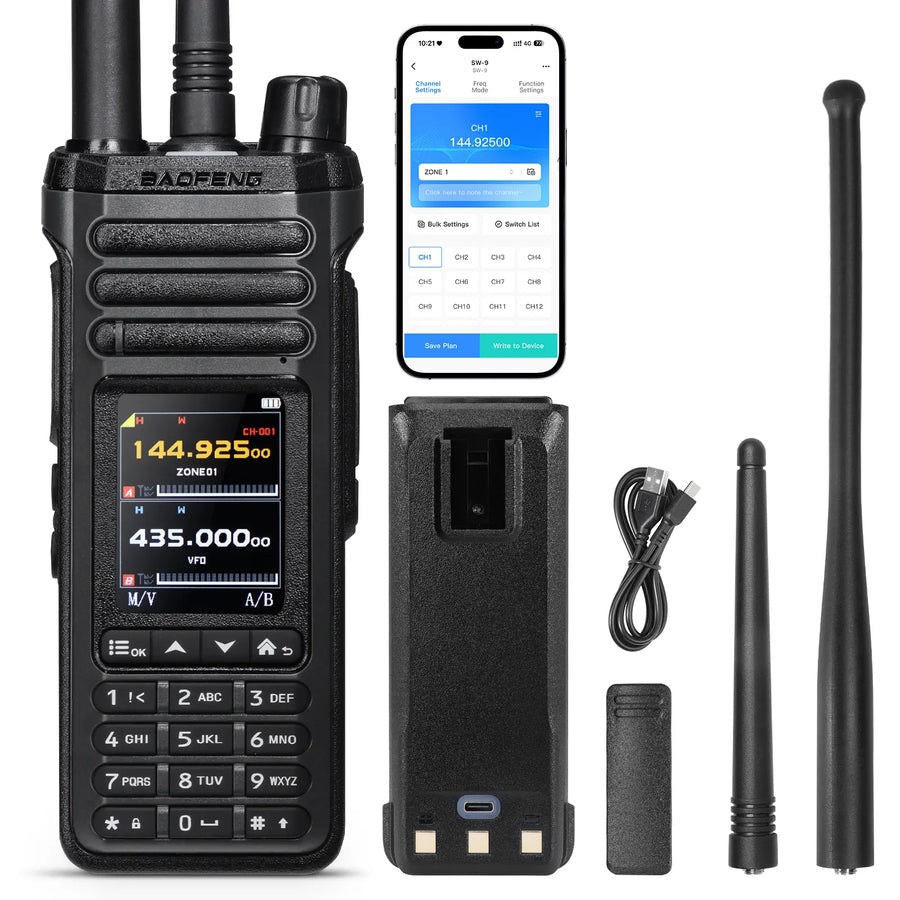

Baofeng SW-9 — Tri-Band Amateur Handheld Radio with SSB Receiver. Manufacturer reference.

Baofeng · Full reference: SW-9

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Tri-Band Amateur Handheld Radio with SSB Receiver
Frequency range: TX: 136-174/220-260/400-470 MHz; RX: LW 153-279kHz/MW 520-1710kHz/SW 150kHz-29.999MHz/FM 64-108MHz/AM 108-137MHz/VHF 136-174MHz/UHF 220-260/350-390/400-600MHz; NOAA
Transmit power: 10W/5W/2W
Channels: 1000; 10 Zones
Battery: 2500mAh Li-ion 7.4V; USB-C
Key features: SSB USB/LSB Reception; Bluetooth Audio; Bluetooth App Programming; Fall Detection Alert; Dual SMA Antenna Ports
Dimensions / weight: 67×41×165 mm
Transmit Frequency (TX): VHF 136–174 MHz | UHF 400–470 MHz, 220-260 MHz
Receive Frequency (RX): VHF 136–174 MHz | UHF 220-260 MHz, 350-390 MHz, 400–600 MHz | LW 153–279 kHz | MW 520–1710 kHz | SW 150 kHz–29.999 MHz | FM 64–108 MHz | AM Airband 108–137 MHz | NOAA Weather
Demodulation Modes: FM | AM | SSB (USB/LSB) | (SSB for HF only)
RF Output Power: 10W / 5W / 2W (Selectable)
Channel Capacity: 1,000 Channels with 10 Zones
Bluetooth Functions: Bluetooth Data & Bluetooth Audio
Display: 2.0" Color TFT LCD
Antenna Interface: Dual SMA Ports (SMA-M / SMA-F)
Charging Port: USB Type-C (5V/2A Max)
App Compatibility: Ola Radio (iOS & Android)
CHIRP Compatibility: Select ”UV-17PRO GPS” Model
Size: 2.6" x 1.6" x 6.5" / 67 x 41 x 165mm

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
