UV-17R

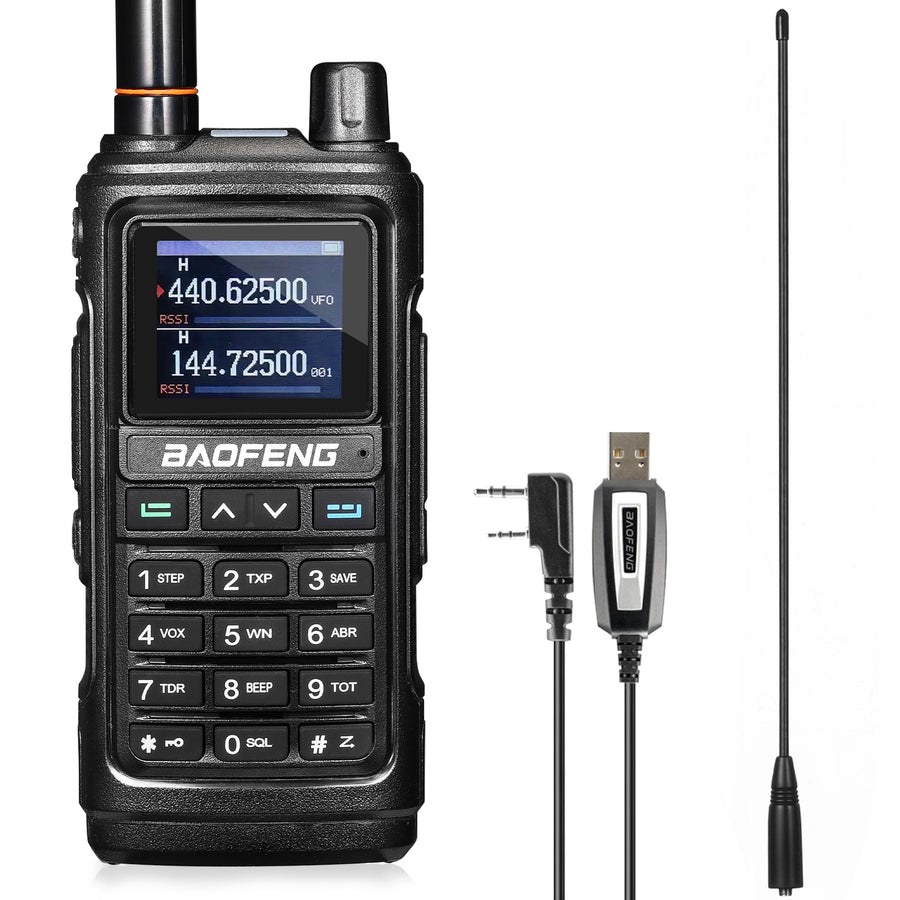

Baofeng UV-17R — Analog Dual-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: UV-17R

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Dual-Band Handheld Two-Way Radio
Frequency range: TX: 144-148 / 420-450 MHz (US); 144-146 / 430-440 MHz (EU); RX: 136-174 / 400-519.995 MHz; FM and NOAA reception
Transmit power: 5W / 2W
Channels: 999
Battery: 7.4V 1800mAh rechargeable Li-ion
Ingress protection: IP54
Key features: Wireless frequency copy; DTMF manual editing; Dual watch; VOX; Emergency alarm
FM: 78-108MHz(RX), WX: 161.650-163.275MHz(RX)
Power: 5W/2W
Channel Spacing: 25.0KHz(Wide)/12.5KHz (Narr)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1700mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380mA
Connection for Accessories: 2 pin Kenwood jack
Antenna Impedance: 50 Ohm

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
