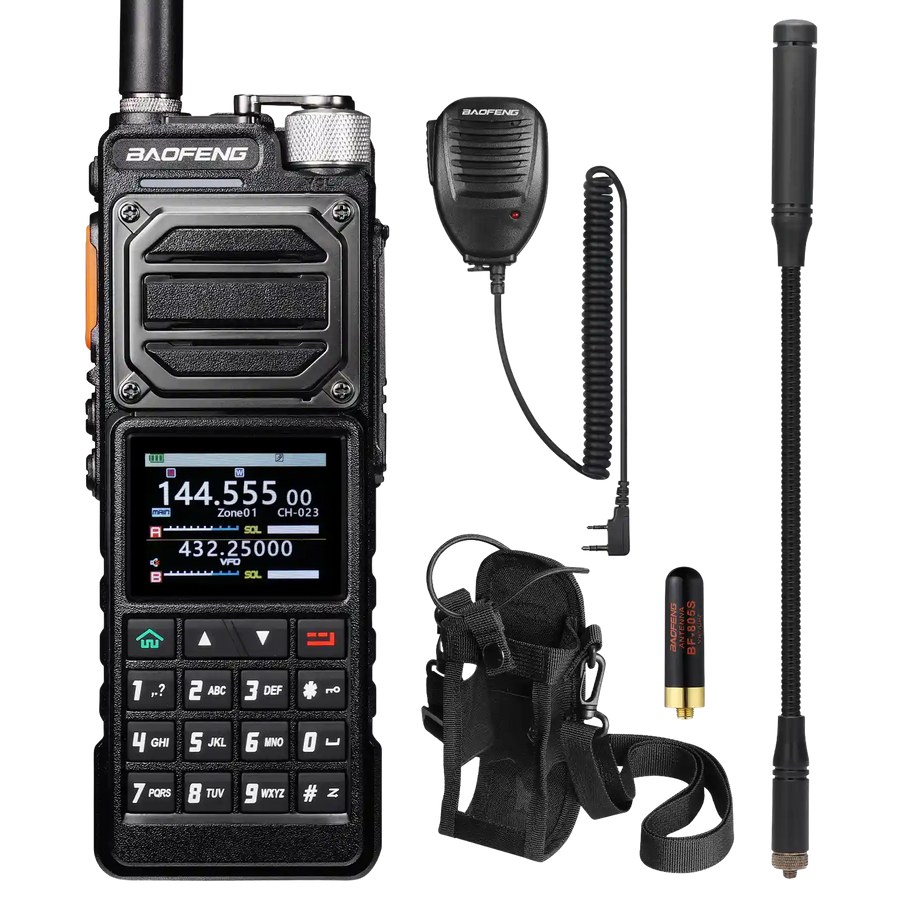

UV-25 Plus

Baofeng UV-25 Plus — Analog Tri-Band Handheld Two-Way Radio with GPS. Manufacturer reference.

Baofeng · Full reference: UV-25 Plus

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Tri-Band Handheld Two-Way Radio with GPS
Frequency range: TX: 136-174 / 220-260 / 400-520 MHz; RX: FM 65-108 / AM 108-136 / 136-174 / 220-260 / 350-390 / 400-520 MHz
Transmit power: 10W; High/Medium/Low selectable
Channels: 1000 channels / 10 zones
Battery: 7.4V 5200mAh Li-ion; USB-C charging
Key features: GPS positioning and sharing; One-key frequency copy; Fall detection alert; NOAA reception; 2-inch color display
Dimensions / weight: 181×69×44 mm; 590g
Receiver Frequency: FM 65-108 MHz; AM 108-136MHz(VFO-Olnly), VHF 136-174MHz, 220-260MHz(VFO-Olnly), UHF350-390MHz, 400-520MHz(VFO-Olnly)
Transmission Frequency: 136-174 MHz& 220-260 MHz & 400-520 MHz
Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
Memory Channel: 1,000 [10 Zones]
Operation Voltage: DC 7.4 V ±10%
Operating Temperature: -10˚C to 60˚C
Antenna Impedance: 50 Ohm
Frequency Stability: ±2.5 ppm
Spurious Emission: -16 dBm1GHz
Audio Distortion: ≤5%
Rated Audio Power Output: 1W @16 ohms
Connection for Accessories: 2-pin Kenwood jack
Dimensions: 7.1 x 2.7 x 1.8'' / 181 x 69 x 44mm
Weight: 0.59kg / 1.3lb
GPS-Compatible Models: UV-28 Plus

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
