UV-25

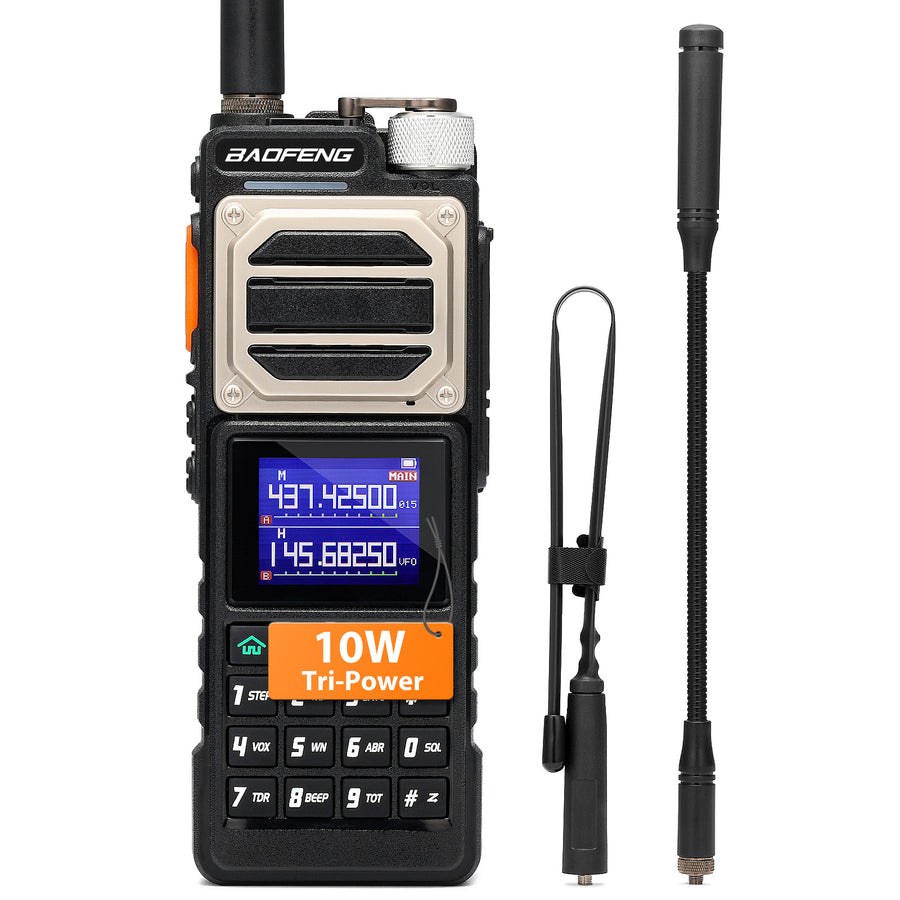

Baofeng UV-25 — Analog Tri-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: UV-25

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Tri-Band Handheld Two-Way Radio
Frequency range: TX: 136-174 / 220-260 / 400-480 MHz (US); 144-146 / 430-440 MHz (EU); RX: FM 88-108 / AM 108-136 / 136-174 / 220-260 / 350-390 / 400-520 MHz
Transmit power: 10W; Tri-Power selectable
Channels: 999
Battery: 7.4V 5200mAh Li-ion; USB-C charging
Key features: One-key frequency copy; DTMF manual dial; Dual watch; NOAA reception; LED flashlight
Dimensions / weight: 180×70×45 mm; 590g
Receiver Frequency: FM 88-108 MHZ;AM 108-136MHz(VFO-only),VHF 136-174MHZ,220-260MHz(VFO-only),UHF350-390MHz,400-520MHz(VFO-only) [EU FM 88-108MHZ: AM 108-136MHz(VFO-only), VHF & UHF]
Transmission Frequency: 136-174 & 220-260 & 400-480 MHz, [EU 144-146 & 430-440 MHz]
Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤2800 mA
Receive Sensitivity: 0.25 μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380 mA
Connection for Accessories: 2-pin Kenwood jack
Antenna Impedance: 50 Ohm
Dimensions: 7.1 x 2.7 x 1.8'' / 180 x 70 x 45mm
Weight: 0.59kg / 1.3lb
Antenna Gain: 2.5 dBi
Antenna SWR: ＜1.5
Frequency: 136~174/400~520 MHz
Antenna Connector Type: SMA-Female
Max Power: 20 Watts
Length: 13.3’’ / 33.8cm

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
