UV-28 Plus

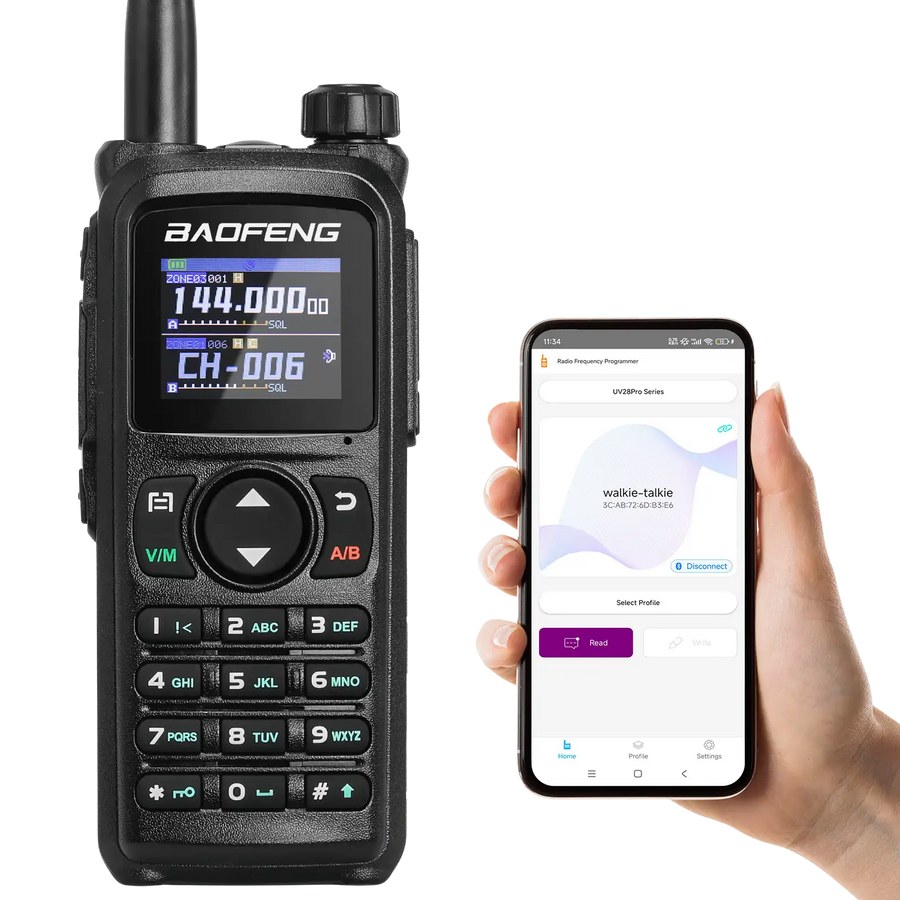

Baofeng UV-28 Plus — Analog Tri-Band Handheld Two-Way Radio with GPS. Manufacturer reference.

Baofeng · Full reference: UV-28 Plus

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Tri-Band Handheld Two-Way Radio with GPS
Frequency range: TX: 136-174 / 220-260 / 400-520 MHz (US); 144-146 / 430-440 MHz (EU); RX: FM 65-108 / AM 108-136 / 136-174 / 220-260 / 350-390 / 400-520 MHz
Transmit power: 10W
Channels: 1000 channels / 10 zones
Battery: 2200mAh rechargeable battery; USB-C charging
Key features: Bluetooth APP programming; GPS location sharing; One-key frequency copy; DTMF manual dial; 1.77-inch TFT display
Dimensions / weight: 157×67×43 mm; 360g
Transmission Frequency: 136-174 MHz& 220-260 MHz & 400-520 MHz, [EU 144-146 & 430-440 MHz]
Receiver Frequency: FM 65-108 MHz; AM 108-136MHz, VHF 136-174MHz, 220-260MHz, UHF350-390MHz, 400-520MHz, [EU FM 65-108 MHz; AM 108-136MHz, VHF & UHF]
Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
Memory Channel: 1,000 Channels / 10 zones
Operation Voltage: DC 7.4 V ±10%
Operating Temperature: -10˚C to 60˚C
Antenna Impedance: 50Ω
Frequency Stability: ±2.5 ppm
Spurious Emission: -16 dBm1GHz
Audio Distortion: ≤5%
Rated Audio Power Output: 0.75 Watts @ 16 Ω
Connection for Accessories: 2-pin Kenwood jack
Dimensions: 6.2 x 2.6 x 1.7'' / 157 X 67 X 43mm
Weight: 0.36kg / 0.79lb
GPS-Compatible Models: UV-25 Plus

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
