UV-5G Mini

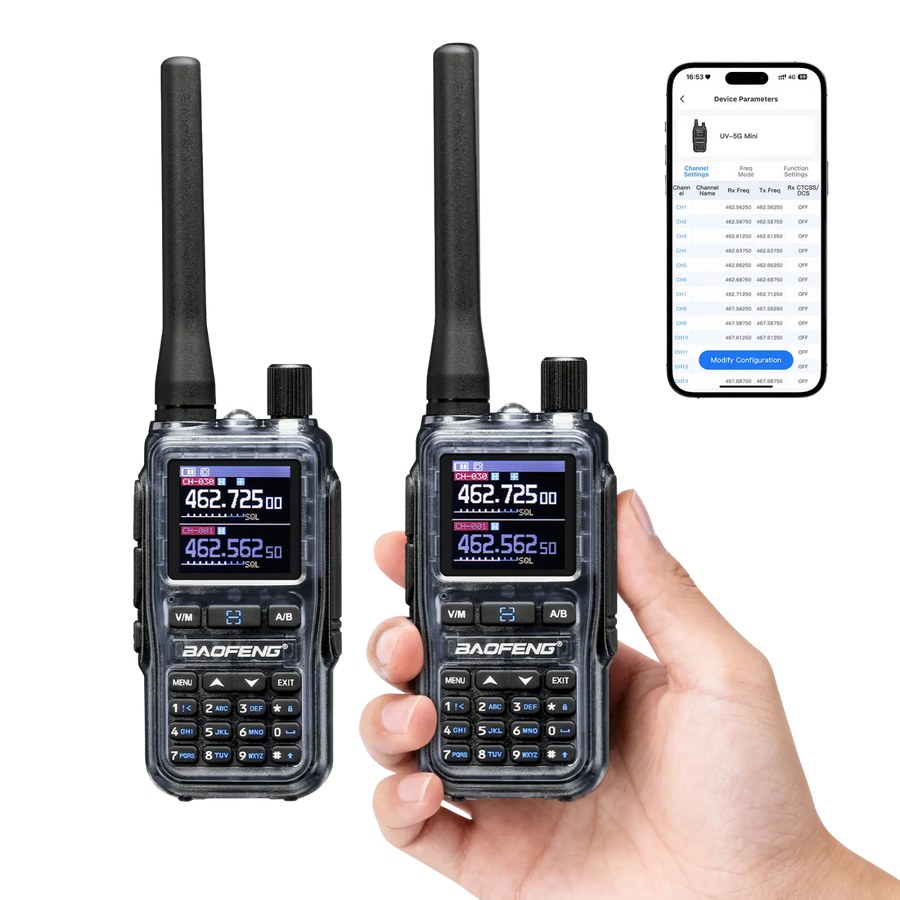

Baofeng UV-5G Mini — Compact GMRS Handheld Radio. Manufacturer reference.

Baofeng · Full reference: UV-5G Mini

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Compact GMRS Handheld Radio
Frequency range: TX: GMRS; RX: FM 76-108/AM 108-136/VHF 136-174/UHF 350-390/400-520 MHz; NOAA
Transmit power: 5W/2W
Channels: 999
Key features: Dual PTT; Dual Standby; App Programming; One-Key Frequency Reverse; 1.44-inch Color Display
Dimensions / weight: 108×52×37 mm; 200g
Frequency (TX & RX): GMRS
Frequency (RX): FM 76–108 MHz; Airband: 108-136 MHz; 136-174 MHz; 350-390 MHz; 400-520 MHz; NOAA
Channel Spacing: 25.0 KHz (Wide) / 12.5 KHz (Narrow)
Memory Channels: Up to 999
Output Power: 5/2W(High/Low)
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1600 mA
Receive Sensitivity: 0.25 µV (12 dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380 mA
Antenna Impedance: 50 Ω
Connection for Accessories: 2-pin Kenwood jack
APP Support: OLA Radio(iOS/Android)
CHIRP Model: Select “UV-5R Mini”
Dimensions (No Antenna): 4.3 × 2.0 × 1.5 in / 108 × 52 × 37 mm
Weight: 7.1 oz / 200 g (battery included)

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
