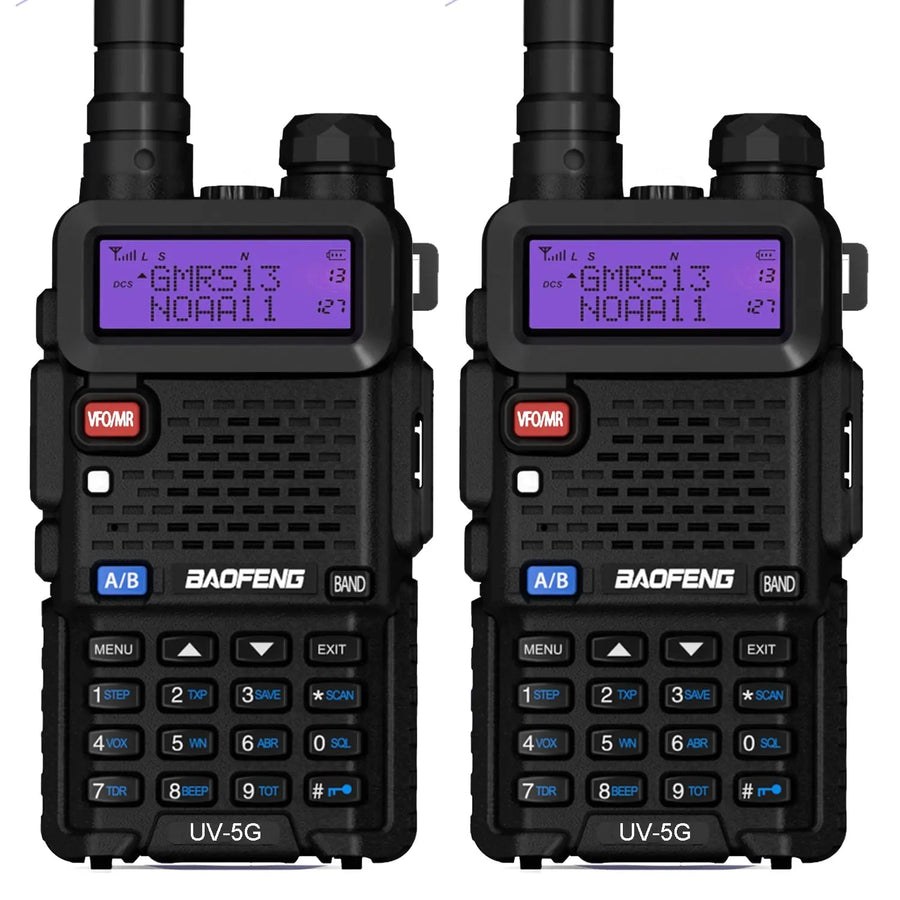

UV-5G (UV-5X)

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

GMRS Handheld Radio

Frequency range

TX: GMRS; RX: VHF 136-174/UHF 400-520 MHz; NOAA

Transmit power

5W

Channels

128

Battery

1800mAh Li-ion 7.4V

Key features

GMRS Repeater Support; NOAA Reception; CHIRP Programming

Memory Channel

30 GMRS + 11 NoAA Weather Channels + 128 Scanner

Operation Voltage

DC 7.4 V ±10%

Battery Capacity

1800mAh (Li-Ion)

Frequency Stability

±2.5ppm

Operating Temperature

-20℃ to +50℃

Mode of Operation

Simplex

Antenna Impedance

50ohm

RF Output Power

≤5W(GMRS)

FM Modulation

11K0F3E@12.5KHz

Adjacent Channel Power

60dB @ 12.5KHz

Transmission current

≤1500mA

Receive Sensitivity

0.25μV (12dB SINAD)

Adjacent Channel Selectivity

≥55dB@12.5KHz

Inter Modulation and Rejection

≥55dB@12.5KHz

Conducted Spurious Emission

≤-57dB@12.5KHz

Rated Audio Power Output

1W @16 ohms

Receive current

≤380mA

Rated Audio Distortion

≤5%

Selection notes

• Specifications are from the Baofeng product page (baofengradio.com).
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Baofeng UV-5G (UV-5X)
• Baofeng official source

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
