UV-5RE

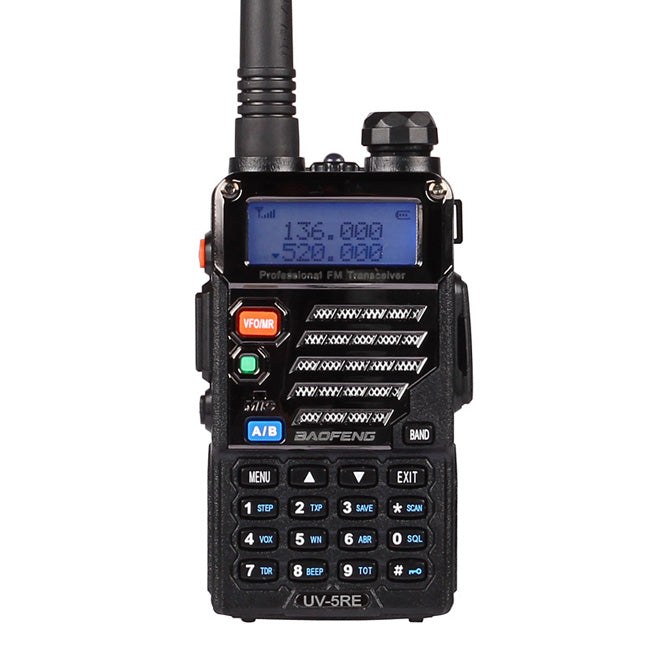

Baofeng UV-5RE — Analog VHF/UHF Dual-Band Handheld Radio. Manufacturer reference.

Baofeng · Full reference: UV-5RE

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog VHF/UHF Dual-Band Handheld Radio
Frequency range: VHF 144–148 MHz; UHF 420–450 MHz (Specifications tab); description also lists 136–174/400–480 MHz
Transmit power: 4W/1W
Channels: 128
Battery: 7.4V 1800mAh Li-ion
Key features: Dual Watch; VOX; CTCSS/DCS; FM Broadcast Receiver; Keypad Lock
Memory Channel: Up to 128 channels
Frequency Stability: 2. 5ppm
Frequency Step: 2. 5/5/6. 25/10/12. 5/20/25kHz
Antenna Impedance: 50 Ohm
Supply Voltage: Rechargeable Lithium-Ion 7. 4V/1800mAh
Consumption in Standby: 380mA
Consumption in Transmission: ≤1. 4A
Mode of Operation: Simple or semi-duplex
Duty cycle: 03/03/54 min (Rx/Tx Standby)
Transmitter: RF power: 4W / 1W
Type of Modulation: FM
Modulation Mode: 16kF3E / 11kF3E(W/N)
Maximum Deviation: ≤5kHz / ≤2. 5kHz(W/N)
Receiver Sensitivity: 0. 2uV(at 12dB SINAD)
Intermodulation: 60dB. Audio Output: 1000mW
Adjacent Channel Selectivity: 65/60dB

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
