UV-5RM Plus GPS

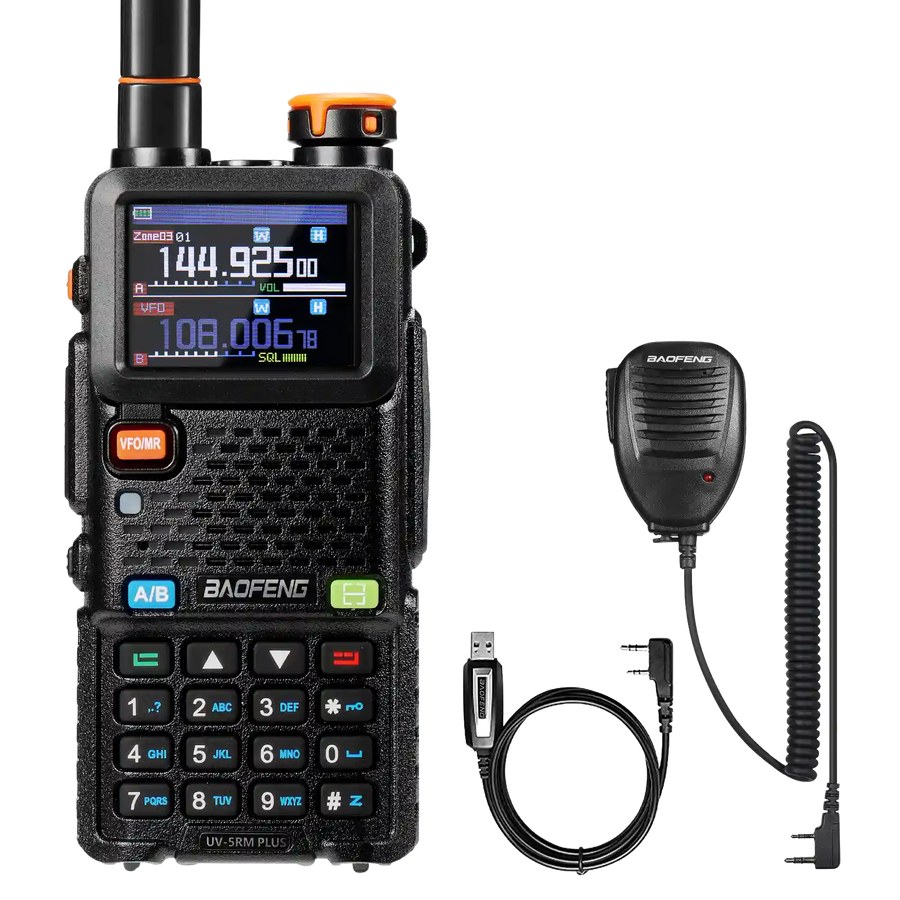

Baofeng UV-5RM Plus GPS — Multi-Band Amateur Handheld Radio. Manufacturer reference.

Baofeng · Full reference: UV-5RM Plus GPS

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Multi-Band Amateur Handheld Radio
Frequency range: TX: 136-174/220-260/400-480 MHz; RX: FM 65-108/AM 108-136/VHF 136-174/220-260/UHF 350-390/400-520 MHz
Transmit power: 10W
Channels: 640
Battery: 2500mAh Li-ion; USB-C
Key features: GPS Position Sharing; Radar Map; One-Key Frequency Copy; 1.77-inch Color Display; Customizable Side Keys
Dimensions / weight: 135×63×39 mm; 290g
Receiver Frequency: FM 65-108 MHz, AM 108-136 MHz, VHF 136-174 MHz, 220-260 MHz, UHF 350-390 MHz, 400-520 MHz, [EU FM 76-108 MHz, AM 108-136 MHz, VHF & UHF]
Transmission Frequency: 136-174 MHz& 220-260 MHz & 400-480 MHz, [EU 144-146 & 430-440 MHz]
Channel Capacity: Total 640
Channel Spacing: 25.0 KHz/12.5 KHz
Input Voltage: DC 7.4 V
Operating temperature: -10 ℃ to 60 ℃
Antenna Impedance: 50Ω
Frequency Stability: ±2.5 ppm
Modulation: 16K0F3E/11K0F3E
Rated Audio Power Output: 0.75 Watts @ 16 Ω
Connection for Accessories: 2-pin Kenwood jack
Dimensions: 5.3 x 2.4 x 1.3 in / 135 x 63 x 39 mm
Weight: 10.2 oz / 290 g

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
