UV-5RM Plus

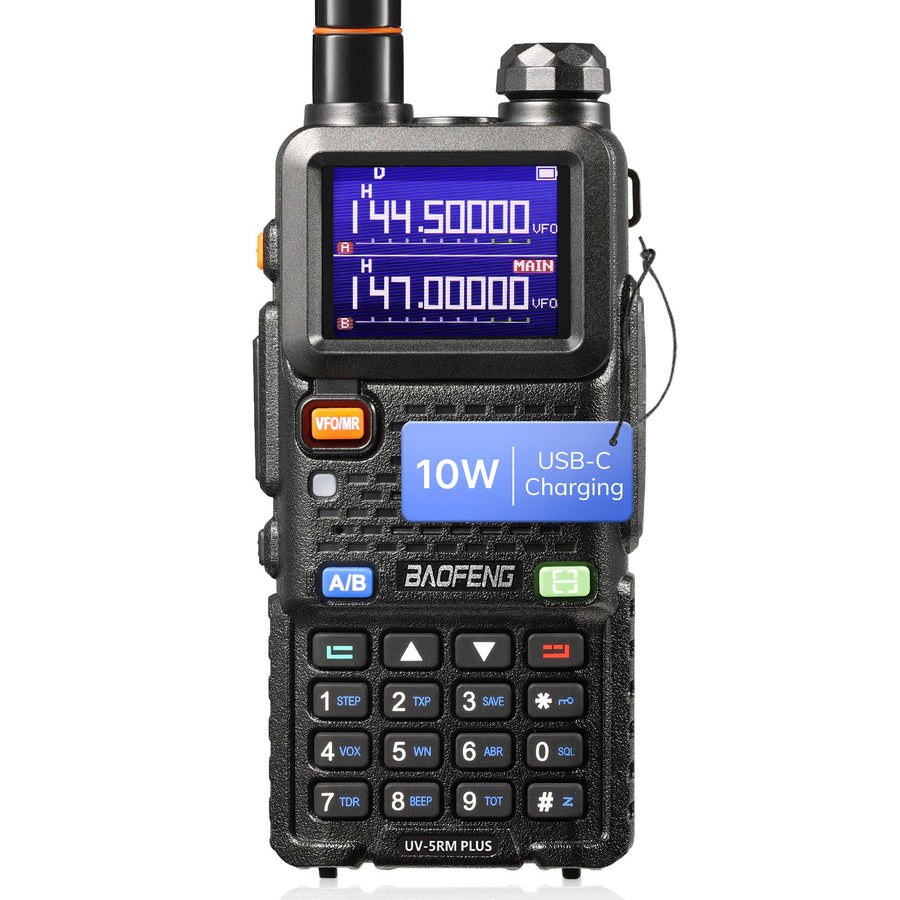

Baofeng UV-5RM Plus — Analog Multi-Band Handheld Radio. Manufacturer reference.

Baofeng · Full reference: UV-5RM Plus

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Multi-Band Handheld Radio
Frequency range: TX: 136–174/220–260/400–480 MHz; RX: FM 88–108 MHz, AM 108–136 MHz, VHF 136–174/220–260 MHz, UHF 350–390/400–520 MHz (some bands VFO only)
Transmit power: 10W
Channels: 999
Battery: 7.4V 2500mAh Li-ion; USB-C Charging
Key features: One-Key Frequency Copy; DTMF Manual Dial; NOAA Reception; 1.77-inch Color Display; Wide/Narrow Channel Spacing
Transmission Frequency: 136-174 & 220-260 & 400-480 MHz, [EU 144-146 & 430-440 MHz]
Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤2800 mA
Receive Sensitivity: 0.25 μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380 mA
Connection for Accessories: 2-pin Kenwood jack
Antenna Impedance: 50 Ohm
Antenna Gain: 2.0 dBi
Antenna SWR: ＜1.2
Frequency: 136-174/400-520 MHz
Antenna Connector Type: SMA-Female
Max Power: 10 Watts
Length: 8.3’’

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
