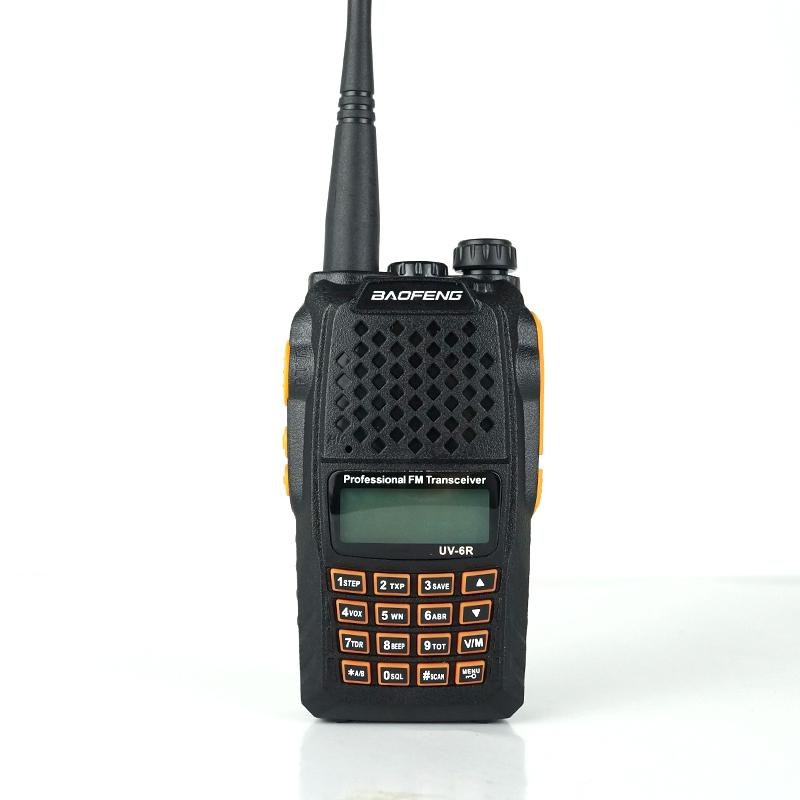

Baofeng UV-6R — Analog Dual-Band Handheld Two-Way Radio. Manufacturer reference.
Baofeng · Full reference: UV-6R
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Analog Dual-Band Handheld Two-Way Radio
- Frequency range
- VHF 144-148 MHz; UHF 420-450 MHz
- Transmit power
- 5W / 1W
- Channels
- 128
- Battery
- Li-ion 7.4V; capacity unspecified
- Key features
- High-gain dual-band antenna; Simplex/semi-duplex operation
- Dimensions / weight
- 100×52×32 mm; 500g including battery and antenna
- Frequency Stability
- ±2.5ppm
- Antenna
- High gain Dual-Band Antenna
- Antenna Impedance
- 50Ω
- Mode of operation
- Simplex or semi-duplex
- Transmitter: Modulation Mode
- 16kΦF3E / 11kΦF3E
- Transmitter: Maximum deviation
- 5kHz(Wide) / 2.5kHz(Narrow)
- Transmitter: Spurious Radiation
- 7μW
- Transmitter: Adjacent Ch. power
- ≤-65dB(Wide) / ≤-60dB(Narrow)
- Transmitter: Pre-emphasis characteristics
- 6dB
- Transmitter: Current
- ≤1.6A(5W)
- Transmitter: CTCSS/DCS deviation
- 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Selection notes
- Specifications are from the Baofeng product page (baofengradio.com).
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
