UV-7B

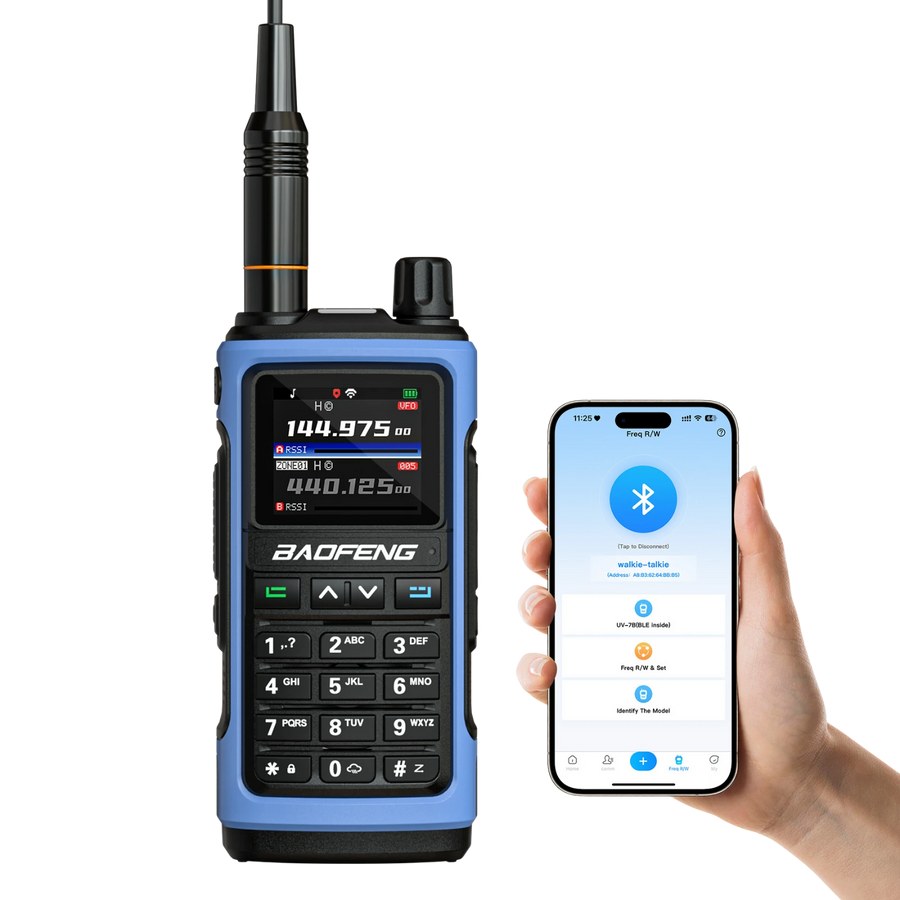

Baofeng UV-7B — Analog Tri-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: UV-7B

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Tri-Band Handheld Two-Way Radio
Frequency range: TX: 136-174 / 220-260 / 400-480 MHz; RX: 136-174 / 220-260 / 350-390 / 400-520 MHz; AM 108-136 MHz; FM 76-108 MHz
Transmit power: 5W
Channels: 1000 channels / 10 zones
Battery: 1800mAh Li-ion; USB-C charging
Key features: Bluetooth APP programming; One-key frequency copy; NOAA reception; SOS flashlight; VOX
Dimensions / weight: 135×61×39 mm; 260g
Receiver Frequency: VHF 136-174 MHz, 220-260 MHz, UHF350-390 MHz, 400-520 MHz, AM: 108-136 MHz, FM: 76-108 MHz
Output Power: 5 W
Channel Capacity: 1000 / 10 Zones
Channel Spacing: 25.0 kHz/12.5 kHz
Input Voltage: 7.4 V DC
Operating temperature: -10℃ to 60℃
Spurious Emission: -16 dBm1GHz
Audio Distortion: ≤5%
Antenna Impedance: 50Ω
Accessory Connector: 2-pin Kenwood Jack
Dimensions: 5.3 x 2.4 x 1.5 in / 135 X 61 X 39mm
Weight: 9.2 oz / 260 g

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
