UV-8D

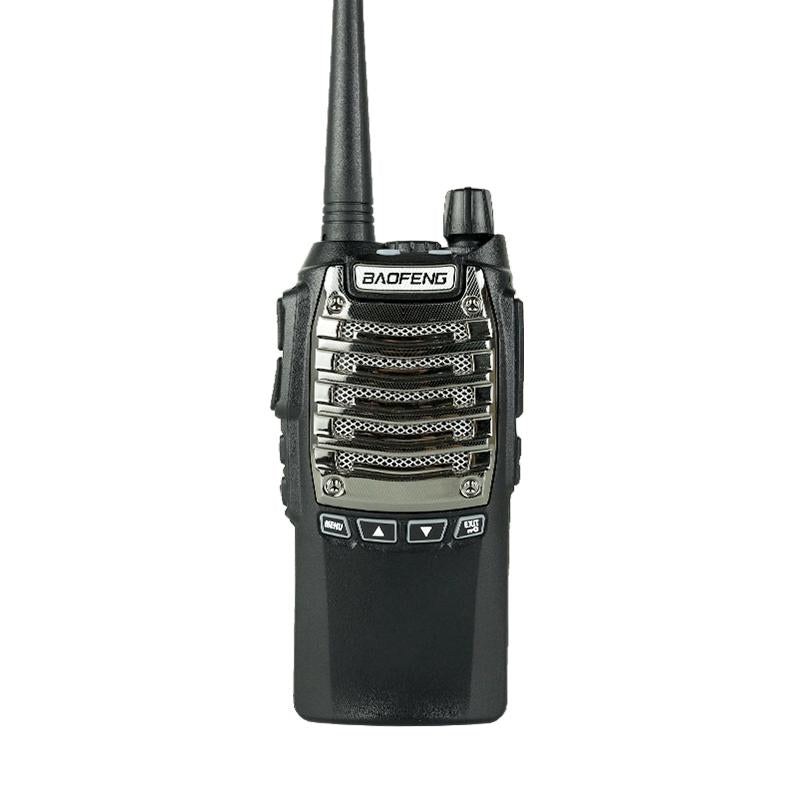

Baofeng UV-8D — Analog Dual-Band Handheld Two-Way Radio. Manufacturer reference.

Baofeng · Full reference: UV-8D

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Analog Dual-Band Handheld Two-Way Radio
Frequency range: VHF 144-148 MHz; UHF 420-450 MHz
Transmit power: 4W / 1W (page also states Max 5W)
Battery: Li-ion 7.4V; capacity unspecified
Key features: High-gain dual-band antenna; Simplex/semi-duplex operation; SMA-Female antenna connector; Kenwood-type accessory connector
Dimensions / weight: 100×52×32 mm; 250g including battery and antenna
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band antenna; SMA -Female
Antenna Impedance: 50Ω
Mode of operation: Simplex or semi-duplex
Earpiece / mic type: Kenwood Plug type
Transmitter: Modulation Mode: 16kΦF3E / 11kΦF3E
Transmitter: Maximum deviation: <5kHz(W) /<2.5kHz(N)
Transmitter: Adjacent Ch. power: ≤-65dB(W) / ≤-60dB(N)
Transmitter: Pre-emphasis: 6dB
Transmitter: Current: ≤1.6A(5W)
Receiver: RF Sensitivity: -122dbm(12db SINAD)
Receiver: Audio power: ≥0.5W
Receiver: Audio Distortion: ≤10%
Receiver: Intermodulation: ≤-65dB(Wide)/≤-60dB(Narrow)
Receiver: Selectivity: ≤-65dB(Wide)/≤-60dB(Narrow)
Receiver: Spurious Rejection: ≤-65dB
Receiver: Blocking: ≥85dBuv/m

Specifications are from the Baofeng product page (baofengradio.com).
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
