IS DistributionsEnquireUV-E70

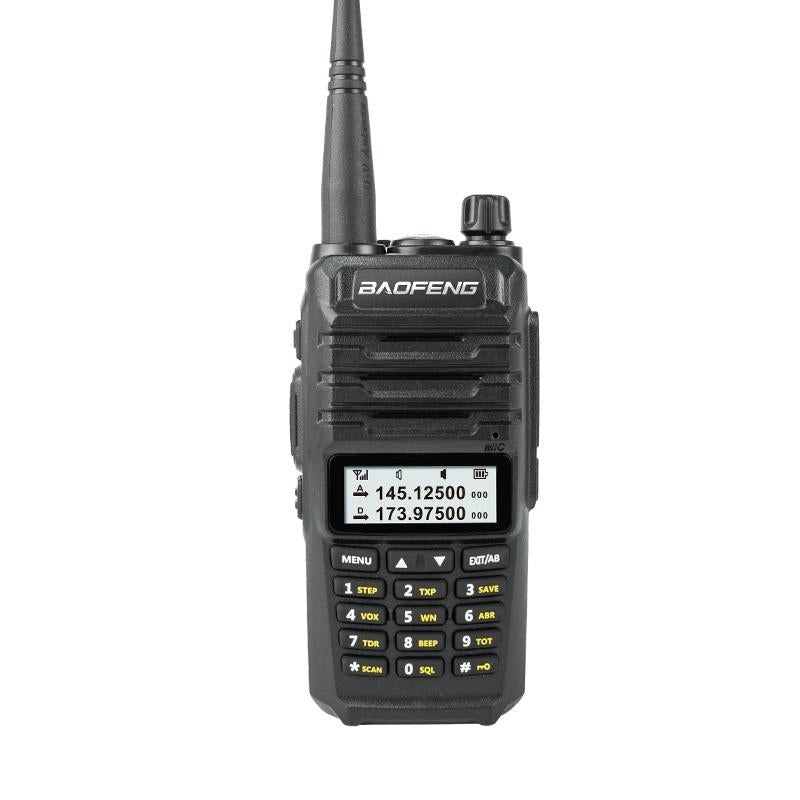

Baofeng UV-E70 — Analog Tri-Band Handheld Two-Way Radio. Manufacturer reference.
Baofeng · Full reference: UV-E70
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Analog Tri-Band Handheld Two-Way Radio
- Frequency range
- TX/RX: 144-146 / 200-260 / 420-450 MHz
- Transmit power
- 5W / 1W
- Channels
- 128
- Battery
- 7.4V 1800mAh rechargeable Li-ion
- Key features
- FM modulation; Simplex/semi-duplex operation
- Dimensions / weight
- 65×41.5×133.8 mm; approximately 279g
- Frequency stability
- 2.5ppm
- Antenna impedance
- 50Ω
- Operating temperature
- -20°C to 60°C
- Consumption in reception
- 380mA
- Consumption in transmission
- ≤1.4A
- Mode of operation
- Simplex or semi-duplex
- Duty cycle
- 03/03/54 min.(Rx/Tx/Standby)
- Transmitter: Type of modulation
- FM
- Transmitter: Emission class
- 16KΦF3E/11KΦF3E(W/N)
- Transmitter: Maximum deviation
- ≤±5kHz/≤±2.5kHz(W/N)
- Transmitter: Spurious emissions
- <-60dB
- Receiver sensitivity
- 0.2 μV(at 12 dB SINAD)
- Receiver: Intermodulation
- 60dB
- Receiver: Audio output
- 1W
- Receiver: Spurious Radiation
- ≥65dB
Selection notes
- Specifications are from the Baofeng product page (baofengradio.com).
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
