DS-TVL222-4-A

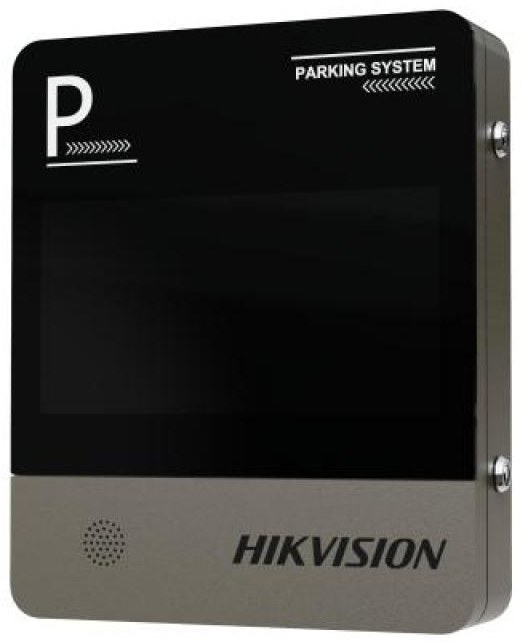

Hikvision DS-TVL222-4-A — Entrance & Exit LED Screen. Manufacturer reference.

Hikvision · Full reference: DS-TVL222-4-A

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Entrance & Exit LED Screen
Maintenance Mode: Front
Pixel Pitch: P4.75
Resolution: 64 × 32
Display Content: GB2312 Character Set，16 × 16 Lattice Chinese Characters
Screen Type: LED
Display Color: Red,Green,Yellow
Number of Module: 1
Viewing Angle: 120° (H) / 120° (V)
Display Mode: instant，left shift，up forward，etc
Pixel Pitch Category: 4.75
Color Temperature: 3000k to 6000k
Brightness Uniformity: ≥95%
Color Uniformity: ≥95%
Contrast Ratio: 2000 : 1
Luminance: 1500cd/m²
Scanning Mode: 8S
Communication Mode: TCP
Protection: IP54
Screen Border Material: Iron Frame Spraying Plastic（Dark armored glass for display part）
Working Temperature and Humidity: -30 to 60 °C; 10% to 85% RH
Power Supply: AC110-240V,50/60Hz,max0.5A
Package Dimensions: 475mm*430mm*185mm
Dimensions: 355 × 315 × 80 mm (13.98 × 12.4 × 3.15 inch)
Weight (with Package): 6.4 kg (14.11 lb.)
Storage Temperature and Humidity: -40 to 70 °C; 10% to 85% RH
Average Consumption: 10W
Max. Consumption: 30W
Lifespan: 100000Hours

Specifications are from the manufacturer's official product page.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
