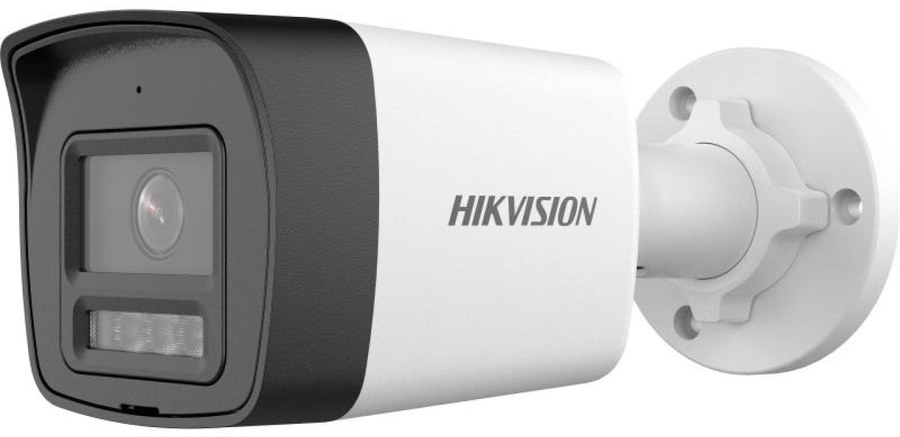

DS-2CD1023G3-LIU

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

2 MP Smart Hybrid Light 3.0 Fixed Bullet Network Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, Horizontal FOV:103°, Vertical FOV:56°, Diagonal FOV:121° 4 mm, Horizontal FOV:82°, Vertical FOV:45°, Diagonal FOV:95°

Aperture

F1.6

Supplement Light Range

Up to 30 m

Wide Dynamic Range (WDR)

Digital WDR

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Hikvision DS-2CD1023G3-LIU
• Hikvision official source

Manufacturer source checked 2026-10-26. The supplied unit and local terms require confirmation.
