DS-3E0105P-E

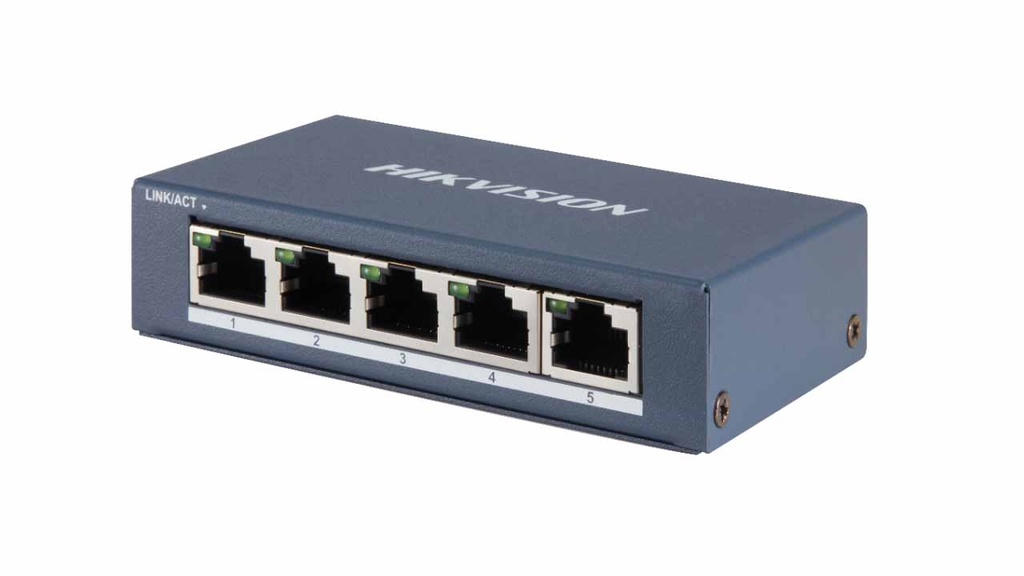

Hikvision DS-3E0105P-E — 4 Port Fast Ethernet Unmanaged POE Switch. Manufacturer reference.
Hikvision · Full reference: DS-3E0105P-E
Choose quantity
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- 4 Port Fast Ethernet Unmanaged POE Switch
- Storage Temperature
- Temperature: -40℃-70℃
- Power Supply
- 51V DC, 1.25A
- Weight
- 0.299kg
- Storage Humidity
- Humidity: 5%-90% , non-condensing
- Surge Protection
- 4KV
- Power Consumption
- ≤63W
- Switching Capacity
- 1Gbps
- Store-and-forward
- Store-and-forward
- Max. Forwarding Rate
- 0.74Mpps
- Working Mode
- Extend On:250m,10M,CAT 5e, Extend Off:100m
- PoE Standard
- IEEE802.3af, IEEE802.3at
- PoE Power Budget
- 58W
- PoE Port
- 4, 10/100Mbps RJ45 ports
- Uplink Port
- 1, 100M Ethernet Port
- Network Ports
- 5
- High-priority Port
- Port 1
- Network Protocol
- IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-30. The supplied unit and local terms require confirmation.
