DS-7108NI-Q1

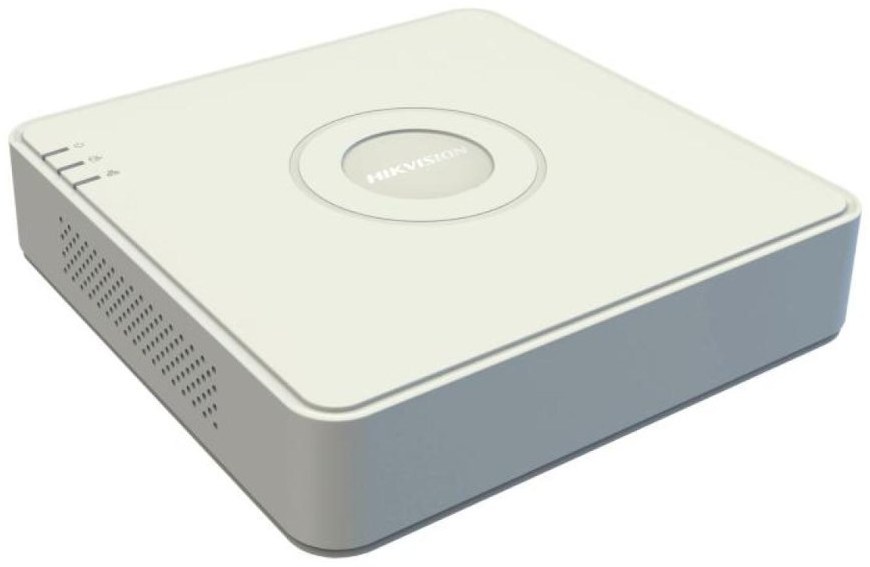

Hikvision DS-7108NI-Q1 — 8-ch Mini 1U NVR. Manufacturer reference.

Hikvision · Full reference: DS-7108NI-Q1

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: 8-ch Mini 1U NVR
IP Video Input: 8-ch; Up to 6 MP resolution
Incoming Bandwidth: 60 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode: HDMI/VGA simultaneous output
Decoding Format: H.265+/H.265/ H.264+/H.264
Recording Resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback: 4-ch
Decoding Capability: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type: Video, Video & Audio
Remote Connection: 16
Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
SATA: 1 SATA interface
Capacity: Up to 6TB capacity for each disk
Alarm In/Out: N/A
USB Interface: Rear panel: 2 × USB 2.0
Power Supply: 12 VDC, 1.5 A
Consumption: ≤ 10 W
Working Temperature: -10 to +55º C (+14 to +131º F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
CE: EN50130-4, EN 61000-3-2,EN 61000-3-3

Specifications are from the manufacturer's official product page.
Enquiry reference DS-7108NI. The manufacturer's product page is titled DS-7108NI-Q1; confirm the exact suffix, lens or option required.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
