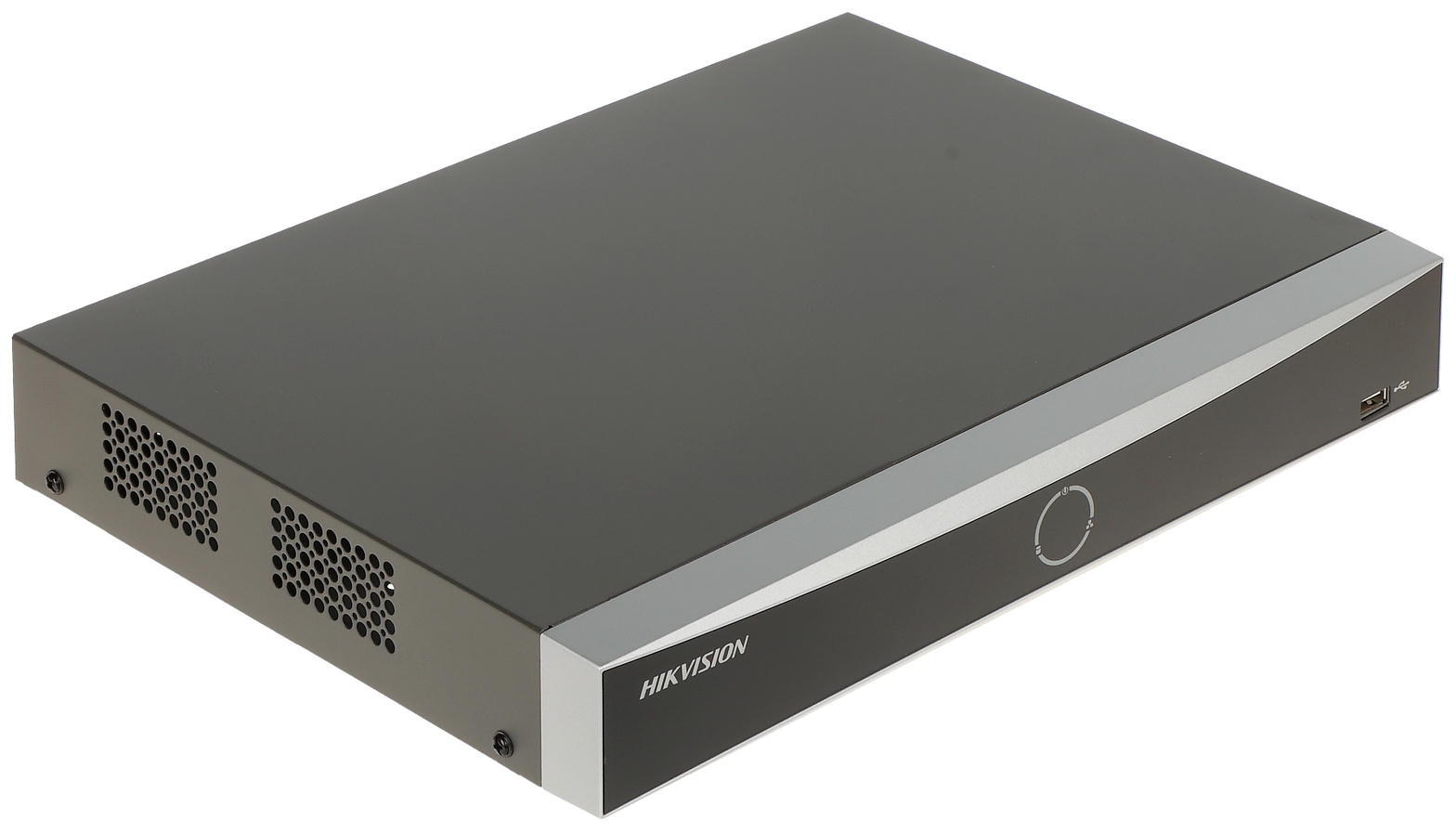

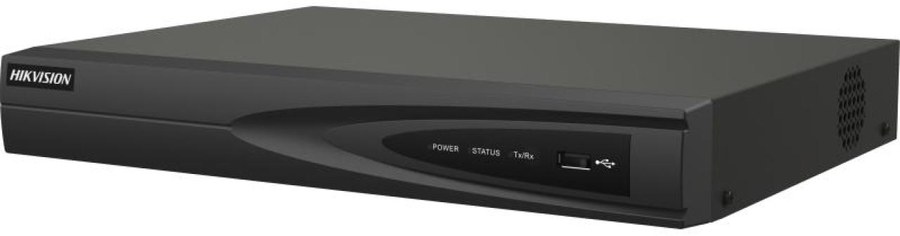

DS-7608NI-Q1/8P

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

8-ch 1U 4K NVR with 8PoE, advise for 2/4MP IPC

Human/Vehicle Analysis

4-ch

IP Video Input

8-ch

HDMI Output

1-ch, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 4K（4096 × 2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

80 Mbps

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726

Decoding Format

H.265+,H.265,H.264+,H.264

Decoding Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps); *: The length or width of camera resolution (each track) cannot exceed 4096 pixels

Synchronous playback

8-ch

Recording Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Remote Connection

32

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Interface

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 75 W

Alarm In/Out

N/A (4/1 is optional)

SATA

1 SATA interface

Capacity

Up to 8 TB capacity for each disk

USB Interface

2 × USB 2.0

Power Supply

48 VDC, 1.88 A

Consumption

≤ 10 W (without HDD and PoE off)

Working Temperature

-10 to +55º C (+14 to +131º F)

Working Humidity

10% to 90%

Dimension (W × D × H)

320 × 240 × 48 mm (12.4" × 9.4" × 1.9")

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Hikvision DS-7608NI-Q1/8P
• Hikvision official product page

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
