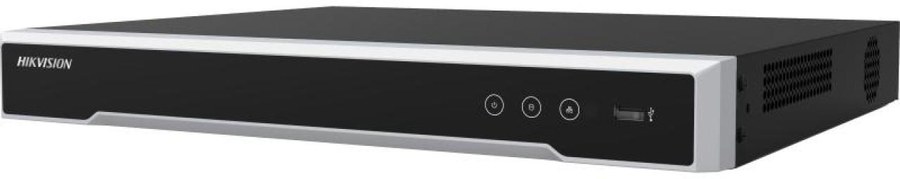

DS-7616NI-Q2

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

16-ch 1U 4K NVR without PoE, advise for 2/4MP IPC

Human/Vehicle Analysis

4-ch

IP Video Input

16-ch

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

1-ch, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding Format

H.265+,H.265,H.264+,H.264

Recording Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Decoding Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps); *: The length or width of camera resolution (each track) cannot exceed 4096 pixels

Synchronous playback

16-ch

Remote Connection

32

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

SATA

2 SATA interfaces

Capacity

Up to 8 TB capacity for each disk

USB Interface

2 × USB 2.0

Power Supply

12 VDC, 3.33 A

Consumption

≤ 15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10 to 90 %

Chassis

1U chassis

Dimension (W × D × H)

385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
