DS-2FA1225-C4(UK)

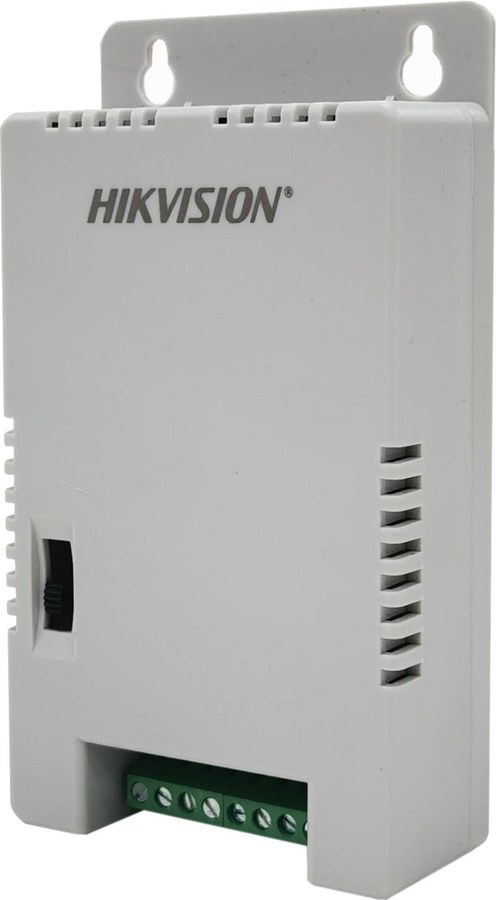

Hikvision DS-2FA1225-C4(UK) — Switching power supply 4ch. Manufacturer reference.

Hikvision · Full reference: DS-2FA1225-C4(UK)

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Switching power supply 4ch
Appearance: White
Dimension: 144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")
Operating Conditions: 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED Indicator: Green
Input: 150 to 285 VAC, 47 Hz to 63 Hz
Output: 12 VDC/1 A per channel
Ripple & Noise 150 mVp-p: 0.15 Vp-p (150 mV)
AC Input Connector: C4
DC Output Connector: DC Plug: grid terminal
Storage Conditions: -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation: Normal: 12 VDC; Long: 13.5 VDC; Ex-Long: 15 VDC

Specifications are from the manufacturer's official product page.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
