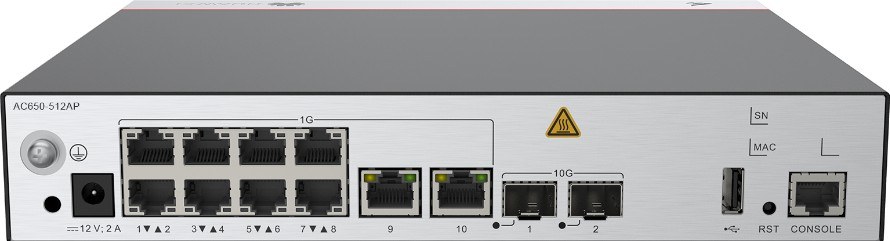

AC650-512AP

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Wireless Access Controller

Huawei description

wireless access controller | Manage APs: 512 | 10 x 10/100/1000BASE-T ports, | 2 x 10 GE SFP+ ports

Part number

02356EQH-001

Huawei category

WLAN / AC600 Series

Manage APs

512

Maximum number of physical ports on the entire device

2 x 10GE (SFP+) + 10 x GE (RJ45)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.); Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.)

Installation Type

Rack,Desk,Wall

Weight without packaging [kg(lb)]

1.9kg

Weight with packaging [kg(lb)]

2.55 kg (5.62 lb)

Maximum power consumption [W]

25.06

Power supply mode

DC power adapter

Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei AC650-512AP
• Huawei eKit official product page
• AC650-512AP Quick Start Guide

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
