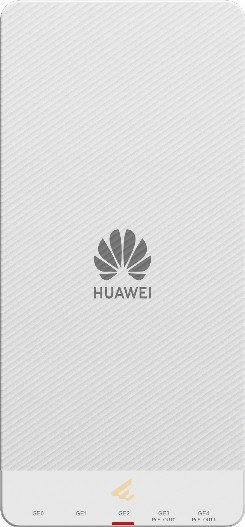

AP271H-P

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

BE3600 Wi-Fi 7 Dual-Band 1GE PoE+ Multi Port Wall Plate AP

Huawei description

Wall plate AP | Wi-Fi 7 | 3.57 Gbps device rate | Dual-radio | 80 access users recommended | Max. 256 access users | 23 dBm transmit power | 5 x GE electrical ports | Smart antenna | 20 m optimal coverage range

Part number

50089773 / 50089773-001

Huawei category

WLAN / AP200 Series

Installation Type

Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal)

Dimensions without packaging (H x W x D) [mm(in.)]

185 mm x 86 mm x 45 mm (7.28 in. x 3.39 in. x 1.77 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

73 mm x 244 mm x 118 mm (2.87 in. x 9.61 in. x 4.65 in.)

Weight without packaging [kg(lb)]

0.412 kg (0.91 lb)

Weight with packaging [kg(lb)]

0.66 kg (1.46 lb)

CPU

2-core, 900 MHz

Memory

DDR4 512 MB

Power supply mode

PoE,DC power adapter

Storage

NAND Flash 256 MB

Rated input voltage [V]

DC: 48 V

Input voltage range [V]

DC: 48 V to 57.6 V; PoE: 802.3bt/at/af

Service port surge protection

PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B; Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

Maximum PoE output power [W]

The GE3 and GE4 ports support PoE output, with each port supporting the maximum output power of 15.4 W and a maximum transmission distance of 20 m.

Maximum number of physical ports on the entire device

GE (RJ45) x 5, 10M/100M/1000M auto-sensing; 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing

Long-term operating temperature [°C(°F)]

0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3

Ground

Floating ground

USB

Supports 2.5 W or 9 W power supply.

Radio number

2

MIMO spatial streams

Radio 0 (2.4 GHz): 2x2; Radio 1 (5 GHz): 2x2

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be

Radio interface

Built-in smart antennas

Antenna gain

2.4 GHz: 5 dBi/chain (peak gain); 2 dBi (combined gain); 5 GHz: 6 dBi/chain (peak gain); 3 dBi (combined gain); BLE: 4 dBi (peak value)

Maximum transmit power

2.4 GHz: 20 dBm/chain; 23 dBm (combined power); 5 GHz: 20 dBm/chain; 23 dBm (combined power); BLE: < 10 dBm

MTBF [year]

143.90

MTTR [hour]

2

Maximum power consumption [W]

15.9 (excluding USB and PoE OUT)

Maximum heat dissipation [BTU/hour]

51.5

802.3bt power supply description

At the power supply level of 802.3bt Class 8: 802.3af PoE OUT is supported on GE3 and GE4, with a total power supply capability of 32 W, and no function is restricted.; At the power supply level of 802.3bt Class 6: When the USB function is not in use, 802.3af PoE OUT is supported on GE3 and GE4, with a total power supply capability of 32 W, and other functions are not restricted.; At the power supply level of 802.3bt Class 6: When the USB function is in use, 802.3af PoE OUT is supported on GE3 and GE4, with a total power supply capability of 26 W, and other functions are not restricted.; The USB port is unavailable currently and will be supported through software upgrade in the future.

802.3at power supply description

When the power supply mode is negotiated to 802.3at, either the USB or PoE OUT (a total of 8 W power output at GE3 and GE4; single-port PoE OUT is recommended) function is available at the same time.; The USB port is unavailable currently and will be supported through software upgrade in the future.

802.3af power supply description

The power supply mode is negotiated to 802.3af.; The USB and PoE OUT functions are not supported.; The uplink 2.5GE electrical port is degraded to GE, and the uplink GE4 electrical port is shut down.; The maximum transmit power of radio 0 and radio 1 decreases by 3 dBm. The maximum radio bandwidth is 20M on the 2.4 GHz frequency band and 80M on the 5 GHz frequency band.

DC power supply description

No function is limited.

Operating frequency band

2.4GHz,5GHz

Frequency stability [ppm]

+/-20

PoE OUT

Supported

Maximum channel bandwidth [MHz]

Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 160 MHz

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (50089773, 50089773-001). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
