AP361H

Huawei AP361H — AX1800 Wi-Fi 6 Dual-Band 1GE PoE Ceiling AP (Wider Coverage). Manufacturer reference.

Huawei · Full reference: AP361H

Ask about this model

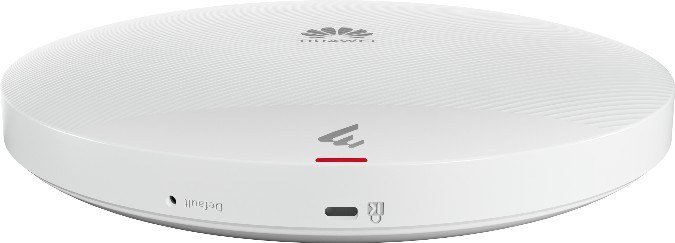

Huawei AP361H AX1800 Wi-Fi 6 Dual-Band 1GE PoE Ceiling AP (Wider Coverage)
Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
AX1800 Wi-Fi 6 Dual-Band 1GE PoE Ceiling AP (Wider Coverage)
Huawei description
Settled AP | Wi-Fi 6 | 1.775 Gbps device rate | Dual-radio | 80 access users recommended | 27 dBm transmit power | Smart antenna | 30 m optimal coverage range
Part number
50089614
Huawei category
WLAN / AP300 Series
Installation Type
Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Dimensions without packaging (H x W x D) [mm(in.)]
Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
240 mm x 373 mm x 57 mm (9.45 in. x 14.69 in. x 2.24 in.)
Weight without packaging [kg(lb)]
0.450 kg (0.99 lb)
Weight with packaging [kg(lb)]
0.88 kg (1.94 lb)
Power supply mode
PoE
Service port surge protection
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B; Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B
Input voltage range [V]
PoE: 802.3at/af
Maximum number of physical ports on the entire device
GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Radio number
2
Wi-Fi standard
2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface
Built-in smart antennas
Antenna gain
2.4G: 4 dBi/chain (peak); 2 dBi (combined gain); 5G: 5 dBi/chain (peak value); 3 dBi (combined gain)
Maximum transmit power
2.4 GHz: 24 dBm/chain; 27 dBm (combined power); 5 GHz: 24 dBm/chain; 27 dBm (combined power)
Maximum power consumption [W]
14.7
Maximum heat dissipation [BTU/hour]
47.7
Operating frequency band
2.4GHz,5GHz
Maximum channel bandwidth [MHz]
Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 80 MHz

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
