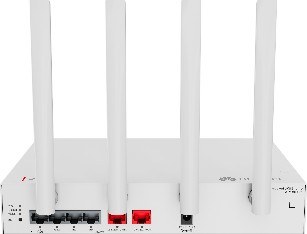

Huawei AR180 Pro — Wi-Fi 7 Enterprise-Grade Wireless Router. Manufacturer reference.
Huawei · Full reference: AR180 Pro
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Wi-Fi 7 Enterprise-Grade Wireless Router
- Huawei description
- AR180Pro (1*2.5GE WAN, 1*2.5GE LAN, 4*GE LAN, 2+2 WiFi7, with 1*AC power adapter, Fanless)
- Part number
- 50010844
- Huawei category
- Router / AR100 Series
- Installation type
- Work bench
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions: 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions: 192 mm x 250 mm x 210 mm (7.56 in. x 9.84 in. x 8.27 in.)
- Chassis height [U]
- 1
- Dimensions with packaging (H x W x D) [mm(in.)]
- 90 mm x 465 mm x 350 mm (3.54 in. x 18.31 in. x 13.78 in.)
- Weight with packaging [kg(lb)]
- 2.16 kg (4.76 lb)
- Weight without packaging [kg(lb)]
- 1.46 kg (3.22 lb)
- Typical power consumption [W]
- 7.5
- Maximum power consumption [W]
- 13.5
- Power supply mode
- AC power adapter
- Number of power modules
- 1
- Rated input voltage [V]
- 110 V AC–220 V AC; 50/60 Hz
- Input voltage range [V]
- 90 V AC–264 V AC; 45 Hz–65 Hz
- Maximum output power [W]
- 24 W
- Safety regulation certification
- IEC/EN/UL 62368-1; GB 4943.1; CSA C22.2 No. 62368-1; AS/NZS 62368-1
- EMC certification
- EN 55032; EN 55035; EN 300386; EN 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-17; ICES-003; AS/NZS CIPSR32; VCCI-CIPSR32; GB/T 9254.1; FCC CFR47 part 15
- Heat dissipation mode
- Natural heat dissipation
- Long-term operating temperature [°C(°F)]
- 0°C to 40°C (32°F to 104°F); Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
- Storage temperature [°C(°F)]
- -40°C to +70°C (-40°F to +158°F)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- LAN ports
- 4 x GE electrical ports, 1 x 2.5GE electrical port
- WAN ports
- 1 x 2.5GE electrical port
- Environmental standards compliance
- EN 300 019-2; IEC 60068-2
- Overtemperature alarm
- Supported
- GE RJ45
- 4 (1G/100M/10M)
- 2.5GE RJ45
- 2 (2.5G/1G/100M/10M)
- Certification
- EMC certification; Safety certification; Manufacturing certification
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
- ISD datasheet (PDF): Huawei AR180 Pro
- Huawei eKit official product page
- Huawei eKitEngine AR180 Series Enterprise-Grade Wireless Router Datasheet
- AR180Pro Quick Start Guide
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
